Processor Socket | Socket AM4 |
Supported processor sockets | Socket AM4 |
Compatible processor series | 3rd Generation AMD Ryzen 5 |
Processor manufacturer | AMD |
Number of displays supported | 2 |
On-board graphics card | No |
Parallel processing technology support | Not supported |
Motherboard form factor | ATX |
Motherboard chipset family | AMD |
Product colour | Black |
MOTHERBOARD CHIPSET | AMD B550 |
Windows operating systems supported | Windows 11 |
Audio output channels | 7.1 channels |
Number of memory slots | 4 |
Memory slots type | DIMM |
Supported memory types | DDR4-SDRAM |
Unbuffered memory | Yes |
Memory channels | Dual-channel |
Supported memory clock speeds | 3333 |
Maximum internal memory | 128 GB |
Depth | 244 mm |
Height | 75 mm |
Width | 305 mm |
Ethernet interface type | 2.5 Gigabit Ethernet |
Ethernet LAN | Yes |
Bluetooth Version | 5.2 |
Wi-Fi | Yes |
Wi-Fi standards | 802.11g |
Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
Bluetooth | Yes |
RGB LED pin header | Yes |
Number of SATA III connectors | 6 |
USB 2.0 connectors | 2 |
CPU fan connector | Yes |
TPM connector | Yes |
Number of COM connectors | 1 |
ATX Power connector (24-pin) | Yes |
Thunderbolt headers | 1 |
EPS power connector (8-pin) | Yes |
Number of chassis fan connectors | 3 |
Front panel audio connector | Yes |
USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
BIOS Type | UEFI AMI |
Drivers included | Yes |
CABLES INCLUDED | SATA |
RAID levels | 10 |
Raid Support | Yes |
Supported storage drive types | HDD & SSD |
Supported storage drive interfaces | M.2, SATA |
Headphone outputs | 1 |
Line-in | Yes |

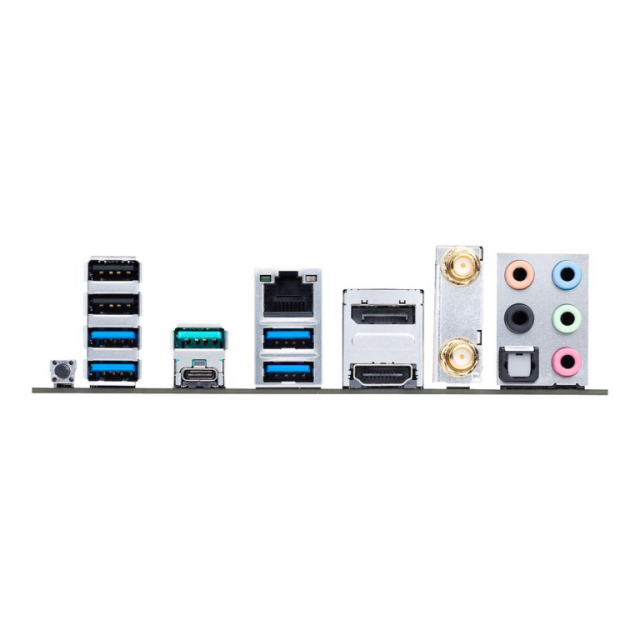

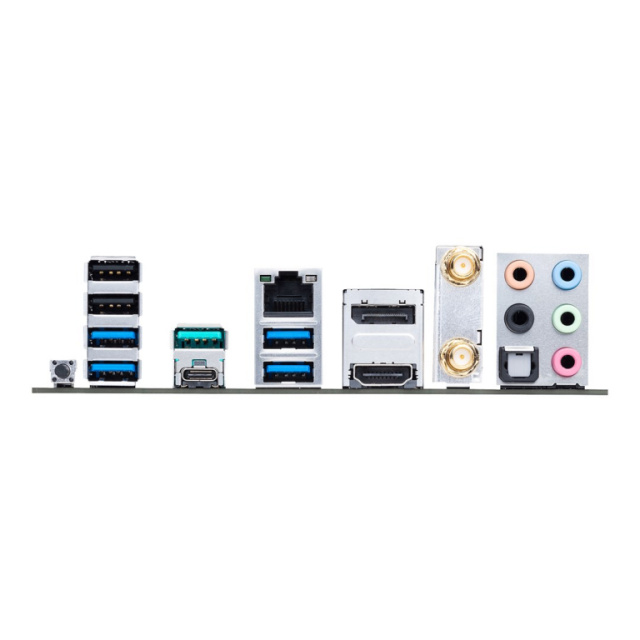

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
USB connector type | USB Type-A |
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
HDMI ports quantity | 1 |
Microphone in | Yes |
DisplayPorts quantity | 1 |
Ethernet LAN (RJ-45) ports | 1 |
S/PDIF out port | Yes |
USB 2.0 ports quantity | 2 |
PCI Express x16 (Gen 4.x) slots | 1 |
PCI Express x1 (Gen 3.x) slots | 3 |
Number of M.2 (M) slots | 2 |
PCI Express x16 (Gen 3.x) slots | 1 |

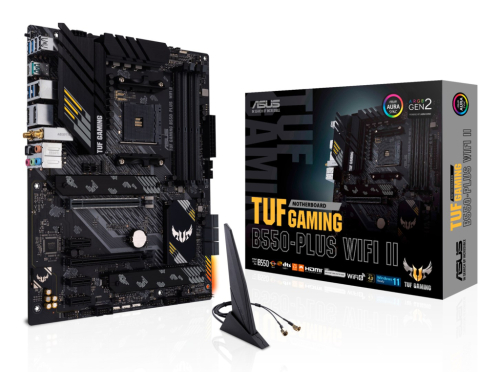

Packaging content | 2 x SATA 6Gb/s cables
1 x ASUS Wi-Fi moving antennas

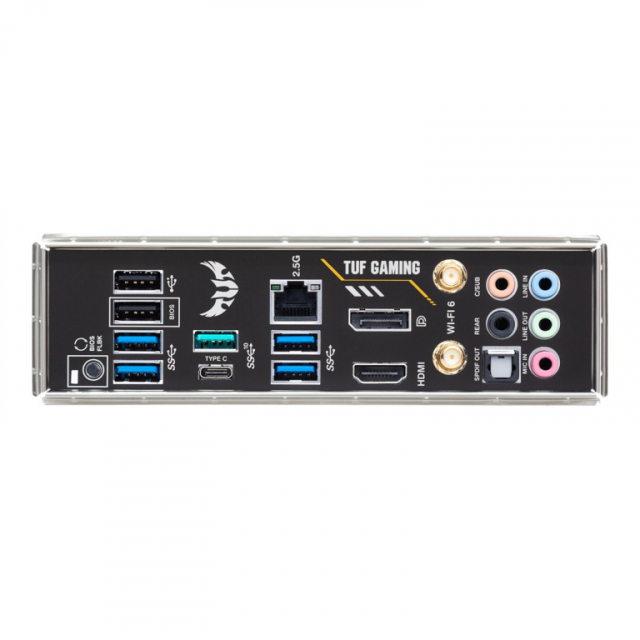

1 x I/O Shield
1 x M.2 Rubber package
1 x M.2 SSD screw package
1 x TUF Gaming sticker
1 x Support DVD
1 x TUF Certification card
1 x User guide |
Weight | 945 g |
Harmonized System (HS) code | 84733020 |
