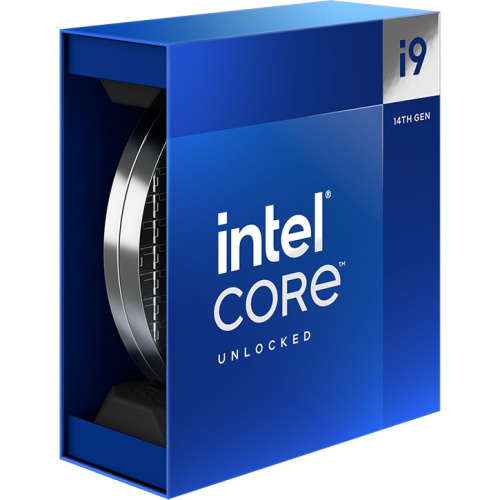

processor | i9-14900K |
processor manufacturer | Intel |
processor generation | Intel Core i9-14xxx |
processor family | Intel® Core™ i9 |
number of CPU cores | 24 |
processor socket | LGA 1700 |
processor threads | 32 |
Processor Operating Modes | 64-Bit |
performance cores | 8 |
Efficient Cores | 16 |
Processor Boost Frequency | 6 GHz |
Power core boost frequency | 5,6 GHz |
Power Fundamental frequency of the core | 3,2 GHz |
Efficient core boost frequency | 4,4 GHz |
Efficient base frequency of the core | 2,4 GHz |
processor cache | 36 MB |
processor cache type | Smart Cache |
Base performance of the processor | 125 W |
Maximum turbo performance | 253 W |
Stepping | B0 |
Maximum number of DMI tracks | 8 |
Memory bandwidth supported by the processor (max). | 89,6 GB/s |
Processor code name | Raptor Lake |
ARK processor detection | 236773 |
Storage | |
Maximum internal memory supported by the processor | 192 GB |
Memory types supported by the processor | DDR4-SDRAM, DDR5-SDRAM |
memory channels | Zweikanalig |
Eigenschaft | Intel® Standard Manageability (ISM) |
Memory bandwidth (max) | 89,6 GB/s |
graphic | |
Eingebautes Grafikkartenmodell | Intel UHD Graphics 770 |
On-board graphics adapter supported outputs | Embedded DisplayPort (eDP) 1.4b, DisplayPort 1.4a, HDMI 2.1 |
On-board graphics adapter base frequency | 300 MHz |
Maximum dynamic frequency of the on-board graphics adapters | 1650 MHz |
Number of supported displays (on-board graphics) | 4 |
On-Board Grafikadapter DirectX Version | 12.0 |
On-Board Grafikadapter OpenGL Version | 4.5 |
Maximum resolution of the on-board graphics adapter (DisplayPort) | 7680 x 4320 Pixel |
Integrated graphics adapter maximum resolution (HDMI) | 4096 x 2160 Pixel |
On-board graphics adapter Device ID | 0xA780 |
Separates Grafikkartenmodell | Nicht verfügbar |
Number of calculators | 32 |
Multi-Format-Codec-Engines | 2 |
features | |
market segment | Desktop |
Terms of Use | Arbeitsstation, PC/Client/Tablet |
Maximum number of PCI Express lanes | 20 |
PCI-Express-Slots-Version | 4.0, 5.0 |
PCI Express configurations | 1x16+1x4, 2x8+1x4 |
Supported Instruction Sets | AVX 2.0, SSE4.1, SSE4.2 |
scalability | 1S |
CPU configuration (max) | 1 |
Specification of the thermal solution | PCG 2020A |
Direct Media Interface (DMI) revision | 4.0 |
Export Control Classification Number (ECCN) | 5A992C |
Commodity Classification System for Automated Tracking (CCATS) | 740.17B1 |
Processor specifics | |
Intel® Turbo-Boost Technology | 2.0 |
Intel® Turbo Boost Max Technology 3.0 frequency | 5,8 GHz |
Intel® Thermal Velocity Boost Frequency | 6 GHz |
operating conditions | |
Tjunction | 100 °C |
Technical details | |
OpenCL-Version | 3.0 |
Start date | Q4'23 |
Status | Launched |
logistic data | |
Goods tariff number (HS) | 8542310001 |
weight and dimensions | |
Processor Package Size | 45 x 37.5 mm |
Other functions | |
Buffer memory L2 | 32768 KB |
RAM memory maximum | 192 GB |
Graphic output | eDP 1.4b, DP 1.4a, HDMI 2.1 |
