energy | |
overall performance | 1650 W |
AC input voltage | 115 - 240 V |
AC input frequency | 50/60 Hz |
input current | 15 - 8 A |
Maximum input current (at 110V) | 15 A |
Maximum input current (at 220V) | 8 A |
Max. output current (+3.3V) | 25 A |
Max. output current (+12V1) | 137,5 A |
Max output current (+5V) | 25 A |
Max. output current (-12V) | 0,3 A |
Max. output current (+5Vsb) | 3 A |

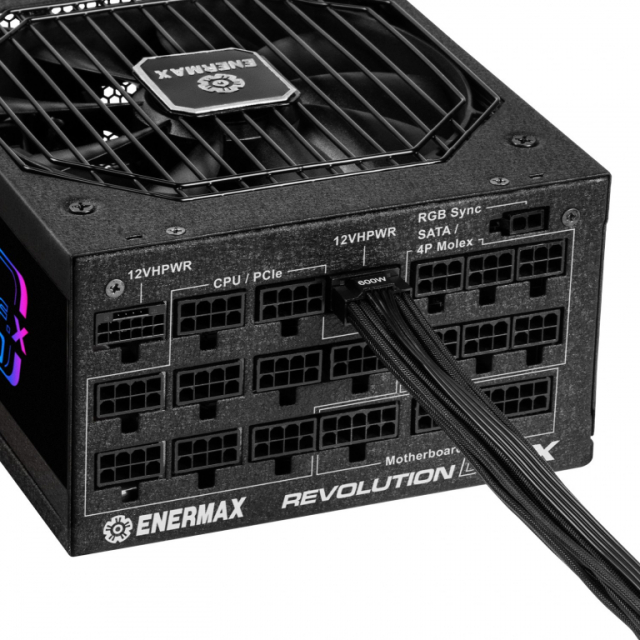

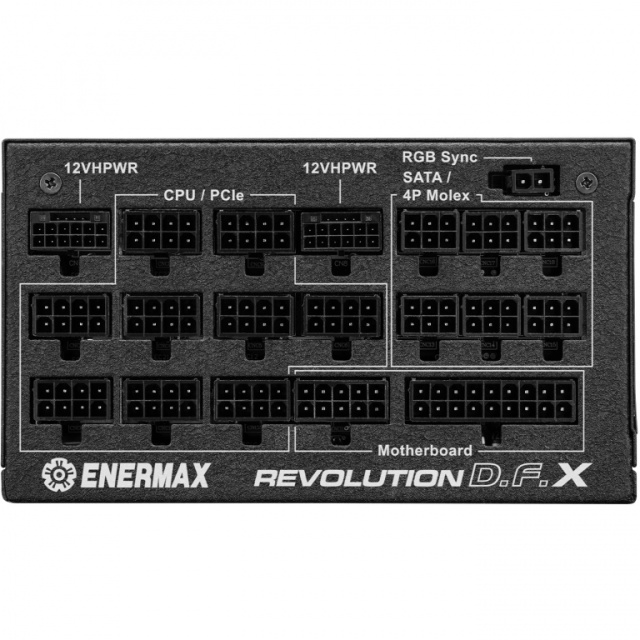

connections and interfaces | |
Motherboard connector plug | 20+4 pin ATX |
Power cable length motherboard | 65 cm |
Number of SATA power plugs | 12 |
Number of Molex connectors 4pin | 6 |
cable type | Vollständig modular |
Services | |
80 plus certification | 80 PLUS Gold |
Supported motherboard form factors | ATX |
purpose | PC |
Power supply unit (PSU) form factor | ATX |
ATX-Version | 3.0 |

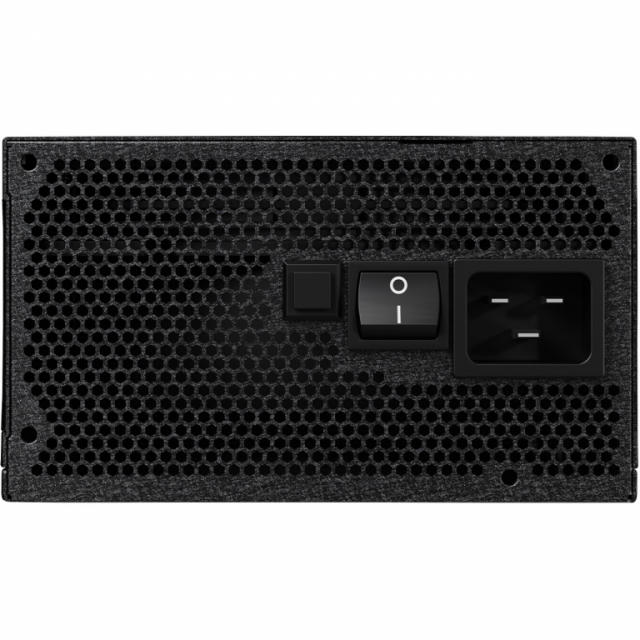

Eigenschaft | Ein-/Ausschalter |
noise level | 30 dB |
Mean Time Between Failures (MTBF) | 100000 h |
Design | |
Product color | Schwarz |
cooling | Aktiv |

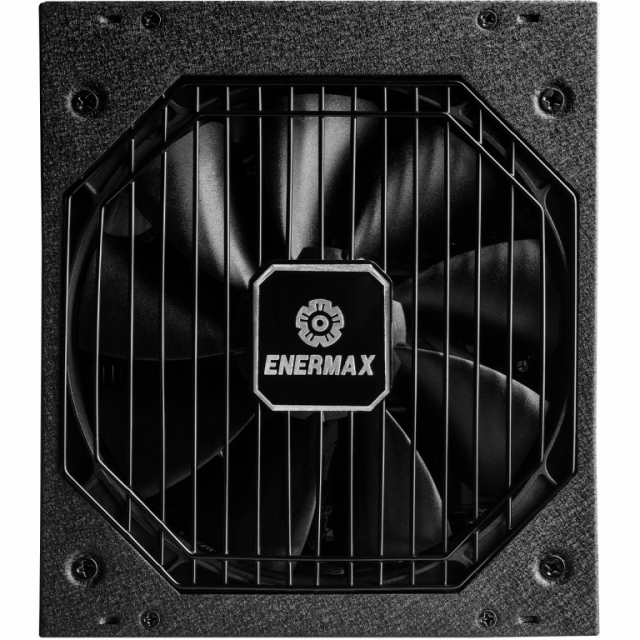

fan diameter | 14 cm |
fan placement | Oben |
operating conditions | |
operating temperatur | 0 - 40 °C |
scope of delivery | |
Supplied cables | AC |
weight and dimensions | |
broad | 150 mm |
depth | 170 mm |
height | 86 mm |
package weight | 4,43 kg |
packaging type | Box |
