Sustainability certificates | RoHS |
Power source type | Battery |
Number of reads per charge | 70000 |
Battery capacity | 3100 mAh |
Battery Technology | Lithium-Ion (Li-Ion) |
Storage temperature (T-T) | -40 - 70 °C |
Operating relative humidity (H-H) | 5 - 95% |
Operating temperature (T-T) | -20 - 50 °C |
Weight | 436 g |
Height | 185 mm |
Width | 142 mm |
Depth | 76 mm |
Product colour | Black |
LED indicators | Yes |
Protection features | Shock resistant |
International Protection (IP) code | IP67 |
Programming function | Yes |
Wireless range | 100 m |
Connectivity Technology | Wired & Wireless |
Standard interfaces | RS-232, USB, Keyboard wedge |
Bluetooth Low Energy (BLE) | Yes |
Ethernet LAN | Yes |
Bluetooth Version | 4.0 |
Harmonized System (HS) code | 84716070 |

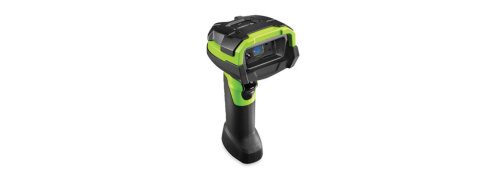

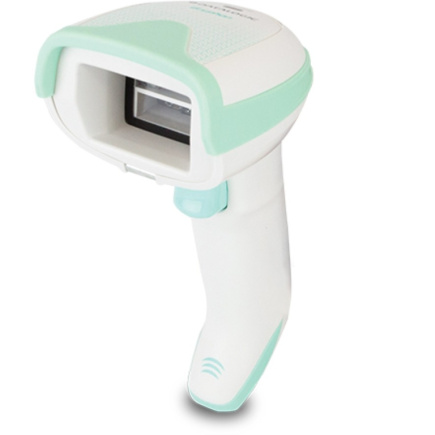

Type | Handheld bar code reader |
2D (matrix & stacked) barcodes supported | Aztec Code |
Optical sensor resolution | 1280 pixels |
Linear (1D) barcodes supported | GS1-128 (UCC/EAN-128) |
Pitch reading angle | -65 - 65° |
Scanner type | 1D/2D |
Sensor type | Laser |
Tilt reading angle | -65 - 65° |
Yaw reading angle | -45 - 45° |
Wavelength | 655 nm |
