Type Outdoor | Pixel Resolution 4 Mega Pixel | Focal Length 4mm | IR Illumination | Sensor size 1/3” Progressive Scan CMOS | Microphone Built-in | Lens Mount M12 | Min. Illumination 0.005 Lux | Electronic Shutter Speed 1/3 to 1/10000 s | 1xMicroSD Card Slot | 1xRJ45 | Supports card capacities up to 256GB | Power options PoE/12V | Power supply requirements 12V DC ± 5%, Max. 14 W, 5.5mm Coaxial Power Plug PoE: 802.3at, class 4, Max. 16 W | Environment Outdoor | Operating temperature range -30–60 °C | Dimensions 120 × 172 × 198 mm

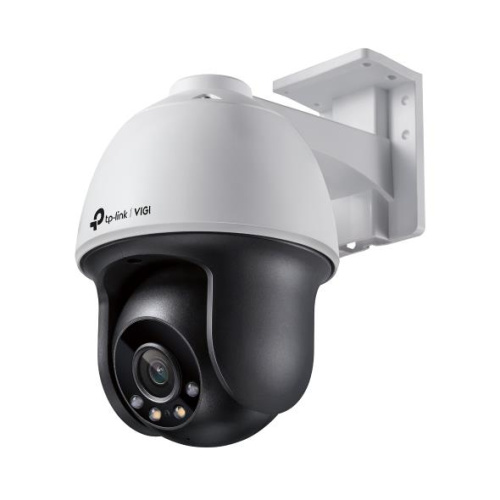

| Description | VIGI 4MP Outdoor Full-Color Pan Tilt Network Camera
- 4MP Super-High Definition: The camera comes with 4MP–more than enough pixels to pick up some of the more discrete details.
- 24h Full-Color: Obtain 24-hour color details, even in pitch-black conditions, with its large-aperture lens, high-sensitivity sensor, and attached supplemental lights.
- Powerful Pan Tilt: Customized patrol routes and auto tracking provide more intelligent options to monitor key areas and improve security within your property.
- Human & Vehicle Classification: Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications.
- Smart Detection: Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, obstructs the camera, or removes/abandons objects.
- Automatic Tracking: Continues following specified moving persons or vehicles with Pan Tilt cameras intelligently analyzing the image.
- Active Defense: Warn potential intruders instantly with sound and light when abnormal events.
- Two-Way Audio: Intelligently detect activities, inform you instantly and response automatically by smart detection and two-way audio.
- H.265+: Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
- Smart Video Enhancement: VIGI's professional technologies process videos to greatly improve their quality that is vital to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision.
- IP66 Waterproof: Reliable IP66 for stable outdoor performance.
- PoE/12V DC: Two types of power supply not only give you more convenience but also make your wiring remarkably easy.
- Flexible Management and Storage: Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manager. Local storage is available for each method, as well as onboard storage with SD card slot (up to 256GB).
|
| Vendor Homepage | www.tp-link.com/en/business-networking/vigi-network-camera/vigi-c540/ |
| Model | VIGI C540 |
| Camera design | PT/PTZ |
| Network Camera Type | Outdoor |
| Pixel Resolution | 4 Mega Pixel |
| Focal length | 4mm |
| IR Illumination | Yes |
| Sensor size | 1/3” Progressive Scan CMOS |
| Microphone | Built-in |
| Lens Mount | M12 |
| Min. Illumination | 0.005 Lux |
| Electronic Shutter Speed | 1/3 to 1/10000 s |
| MicroSD Card Slot | 1 |
| RJ45 | 1 |
| Supports card capacities up to | 256GB |
| Power Options | 12V/PoE |
| Power supply requirements | 12V DC ± 5%, Max. 14 W, 5.5mm Coaxial Power Plug PoE: 802.3at, class 4, Max. 16 W |
| Environment | Outdoor |
| Operating temperature range | -30–60 °C |
| Dimensions | 120 × 172 × 198 mm |
| Unit Net Weight | 0.98 kg |
| Unit Gross Weight | 1.18 kg |
| Unit Box Width | 0.165 |
| Unit Box Length | 0.245 |
| Unit Box Height | 0.215 |
| Full Description Line | Type Outdoor|Pixel Resolution 4 Mega Pixel|Focal Length 4mm|IR Illumination|Sensor size 1/3” Progressive Scan CMOS|Microphone Built-in|Lens Mount M12|Min. Illumination 0.005 Lux|Electronic Shutter Speed 1/3 to 1/10000 s|1xMicroSD Card Slot|1xRJ45|Supports card capacities up to 256GB|Power options PoE/12V|Power supply requirements 12V DC ± 5%, Max. 14 W, 5.5mm Coaxial Power Plug PoE: 802.3at, class 4, Max. 16 W|Environment Outdoor|Operating temperature range -30–60 °C|Dimensions 120 × 172 × 198 mm |
| Category Code | FNC |
