Type Outdoor | Pixel Resolution 4 Mega Pixel | Focal Length 2.7 mm–13.5 mm | IR Illumination | Sensor size 1/2.9 ” CMOS | Microphone Built-in | Min. Illumination 0.0008 Lux | Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s | 1xMicroSD Card Slot | 1xRJ45 | Supports card capacities up to 256GB | Power options PoE/12V | Power supply requirements PoE / 12VDC power | Environment Outdoor | Operating temperature range -30°C~+60°C | Dimensions 108.3 mm × Φ122 mm
Kirjeldus | - 1/2.9 ” CMOS; 2688x1520 @ 20FPS
- Minimum illumination: 0.008 lux @ F1.5(Color,30IRE); 0.0008 lux @ F1.5(B/W,30IRE); 0 lux (Illuminator on)
- True Day/Night (ICR), BLC/ HLC/ True WDR(120dB) / 3D DNR
- 2.7 mm–13.5 mm variocal lens (104°–29°)
- Up to 40 meters IR Illumination, Smart IR
- ONVIF (Profile S/Profile T); CGI; P2P; Milestone
- SD Card slot 256 GB max, Built-in MIC
- Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)
- Eyeball design, Metal case, IP67, -30°C~+60°C, PoE / 12VDC power. 6.1 W max
- Free IP monitoring software available
|
Tootja lehekülg | www.dahuasecurity.com/ceen/products/All-Products/Network-Cameras/WizSense-Series/2-Series/4MP/IPC-HDW2441T-ZS |

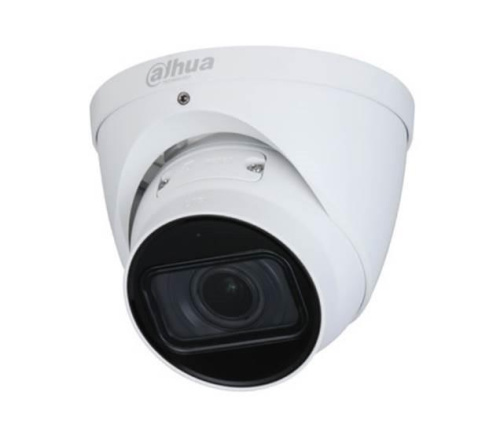

Mudel | IPC-HDW2441T-ZS-27135 |
Kaamera disain | Eyeball |
Võrgukaamera tüüp | Outdoor |
Efektiivseid megapiksleid | 4 Mega Pixel |
Objektiivi fokaalvahemik | 2.7 mm–13.5 mm |
IR valgustus | Yes |
Sensori suurus | 1/2.9 ” CMOS |
Mikrofoon | Built-in |
Minimaalne valgustus | 0.0008 Lux |
Elektrooniline säriaeg | Auto/Manual 1/3 s–1/100,000 s |
MicroSD kaardipesa | 1 |
RJ45 | 1 |
Toetab kaardi mahtusid kuni | 256GB |
Toitevalikud | 12V/PoE |
Toiteadapteri/ploki nõue | PoE / 12VDC power |
Energiatarbimine | 6.1 Watts |
Keskkond | Outdoor |
Töötemperatuuri ulatus | -30°C~+60°C |
Mõõtmed (füüsilised parameetrid) | 108.3 mm × Φ122 mm |
Kaal | 0.69 kg |
Brutokaal | 0.86 kg |
Üksuse kasti laius | 0.155 |
Üksuse kasti pikkus | 0.16 |
Üksuse kasti kõrgus | 0.135 |
Täiskirjeldus | Type Outdoor|Pixel Resolution 4 Mega Pixel|Focal Length 2.7 mm–13.5 mm|IR Illumination|Sensor size 1/2.9 ” CMOS|Mikrofon Built-in|Min. Illumination 0.0008 Lux|Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s|1xMicroSD Card Slot|1xRJ45|Supports card capacities up to 256GB|Power options PoE/12V|Power supply requirements PoE / 12VDC power|Environment Outdoor|Operating temperature range -30°C~+60°C|Dimensions 108.3 mm × Φ122 mm |
Kategooria kood | FNC |
