Type HDTV/Megapixel/Outdoor | Pixel Resolution 5 Mega Pixel | Focal Length 2.8mm | IR Illumination | Sensor size 1/2.7” | Microphone Built-in | Lens Mount M12 | Min. Illumination 0.0009 Lux | Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s | 1xAudio-In | 1xAudio-Out | 1xRJ45 | 1xAlarm In | 1xAlarm Out | Supports card capacities up to 256GB | Power options PoE/12V | Power supply requirements 12 VDC/PoE (802.3af)/ePoE | Environment Outdoor | Operating temperature range -40°C~+60°C | Colour White | Dimensions 192.7 × 70.5 × 66.4mm
| Kirjeldus | 1/2.7” 5Megapixel progressive CMOS, 2960 × 1668 @ 30FPS max
Minimum illumination: 0.0009 lux @F1.6 (Color, 30 IRE); 0.0005 lux @F1.6 (B/W, 30 IRE); 0 lux (Illuminator on)
True Day/Night (ICR), BLC/HLC/True WDR 120 dB/3D DNR
2.8 mm fixed lens (111° HFOV)
Up to 50 meters IR LED Illumination
H.265; H.264; H.264H; H.264B; MJPEG encoding, ONVIF (Profile S/Profile G/Profile T); CGI
Built-in MIC, 1/1 Audio I/O, 1/1 Alarm I/O
Micro SD card up to 256GB supported
Metal case, IP67, -40°C~+60°C, PoE / 12VDC power, 6.8W max
With deep learning algorithm, it supports: video metadata, smart sound detection, IVS, face detection, smart object detection, people counting, etc.
Free IP monitoring software available
|
| Tootja lehekülg | www.dahuasecurity.com/products/All-Products/Network-Cameras/WizMind-S-Series/5MP/IPC-HFW5541E-ASE=S3 |
| Mudel | IPC-HFW5541E-ASE-0280B-S3 |

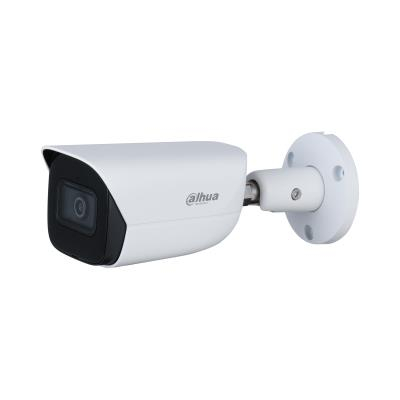

| Kaamera disain | Bullet |
| Võrgukaamera tüüp | HDTV/Megapixel/Outdoor |
| Efektiivseid megapiksleid | 5 Mega Pixel |
| Objektiivi fokaalvahemik | 2.8mm |
| IR valgustus | Yes |
| Sensori suurus | 1/2.7” |
| Mikrofoon | Built-in |
| Objektiivikinnitus | M12 |
| Minimaalne valgustus | 0.0009 Lux |
| Elektrooniline säriaeg | Auto/Manual 1/3 s–1/100,000 s |
| Alarmi sisendpordid | 1 |
| Alarmi väljundpordid | 1 |
| Audio-in sisend | 1 |
| Audio-Out sisend | 1 |
| RJ45 | 1 |
| Toetab kaardi mahtusid kuni | 256GB |
| Toitevalikud | 12V/PoE |
| Toiteadapteri/ploki nõue | 12 VDC/PoE (802.3af)/ePoE |
| Energiatarbimine | 6.8 Watts |
| Keskkond | Outdoor |
| Töötemperatuuri ulatus | -40°C~+60°C |
| Värvus | White |
| Mõõtmed (füüsilised parameetrid) | 192.7 × 70.5 × 66.4mm |
| Kaal | 0.59 kg |
| Brutokaal | 0.783 kg |
| Üksuse kasti laius | 0.115 |
| Üksuse kasti pikkus | 0.22 |
| Üksuse kasti kõrgus | 0.1 |
| Täiskirjeldus | Type HDTV/Megapixel/Outdoor|Pixel Resolution 5 Mega Pixel|Focal Length 2.8mm|IR Illumination|Sensor size 1/2.7”|Mikrofon Built-in|Lens Mount M12|Min. Illumination 0.0009 Lux|Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s|1xAudio-In|1xAudio-Out|1xRJ45|1xAlarm In|1xAlarm Out|Supports card capacities up to 256GB|Power options PoE/12V|Power supply requirements 12 VDC/PoE (802.3af)/ePoE|Environment Outdoor|Operating temperature range -40°C~+60°C|Colour White|Dimensions 192.7 × 70.5 × 66.4mm |
| Kategooria kood | FNC |
