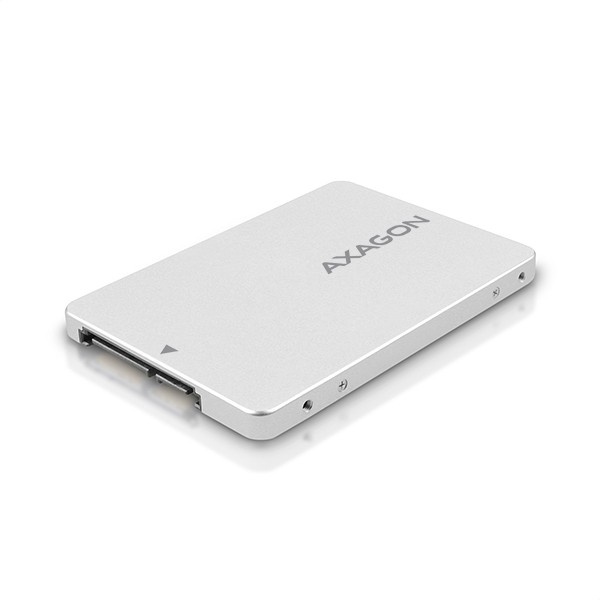

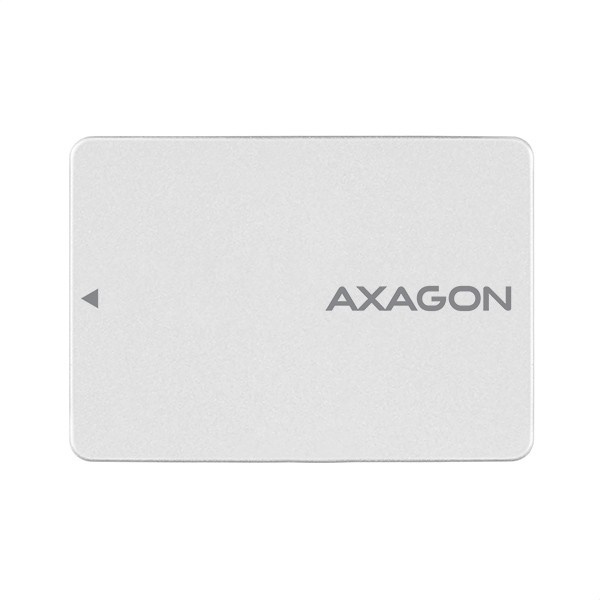

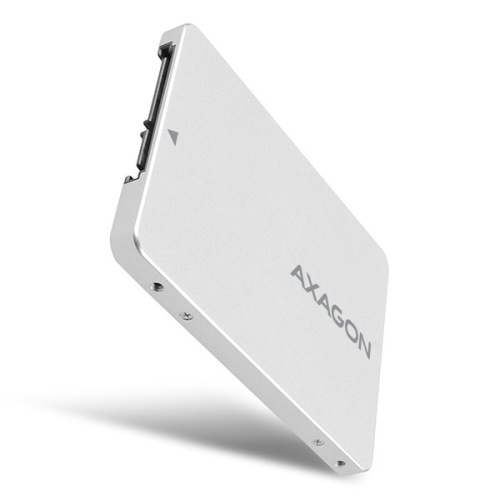

Internal 2.5" box AXAGON RSS-M2SD with SATA interface is designed for SATA M.2 SSDs.
The SATA 6G interface will allow the user to enjoy modern M.2 SSDs with a bit rate of up to 6Gb/s. In addition, the internal M.2 box supports other modern functionalities, e.g. TRIM.
In the box, SATA M.2 SSDs with a size up to 22x80 mm can be mounted. The box does not limit SSD capacity, and inserted M.2 SSD cards may be of both one-sided and double-sided types.
In the operating system, in BIOS (UEFI) and during booting, the internal box with inserted M.2 card behaves like a standard hard disk. This reduction features both appearance and dimensions of a standard SDD. By inserting the M.2 SSD in the reduction you will easily create a very fast internal 2.5" disk.
Input:
SATA 6G (SATA III) interface, compatible with SATA 3G (SATA II) and SATA 1.5G (SATA I).

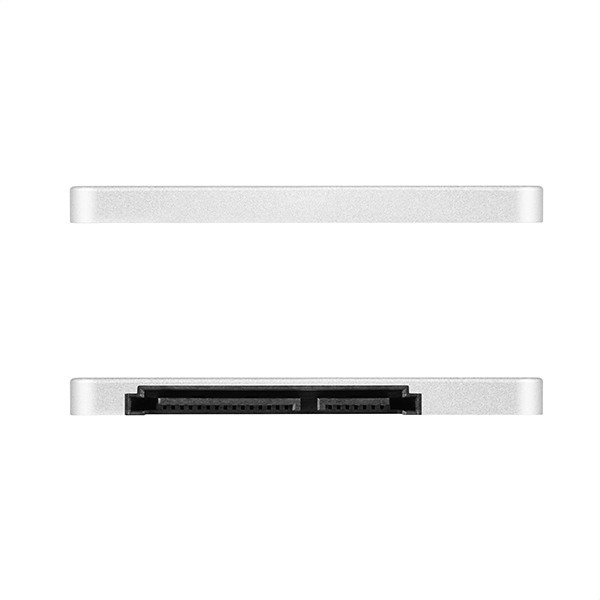

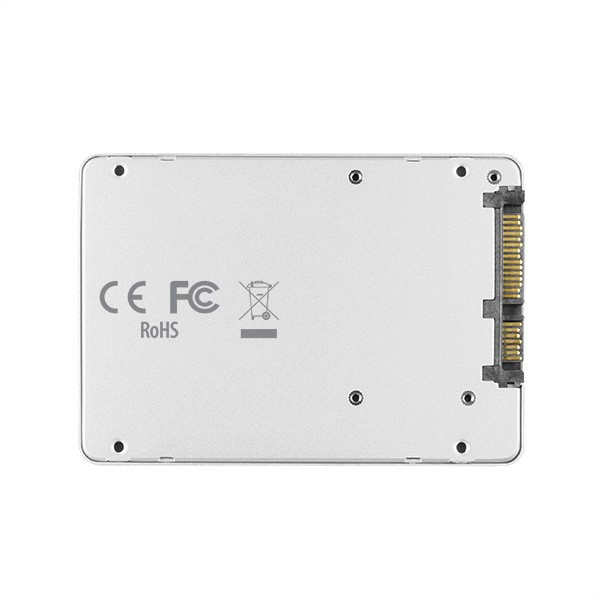

22-pin (7+15) SATA data and power supply male connector to connect the box with the motherboard.
To achieve the best possible bit rates, the use of a SATA 6G controller is recommended.
Device support:
SATA M.2 SSDs.
designed for B+M-key and B-key card formats,
NGFF 75-pin B-key slot for SATA M.2 drives.
Other features:
Support of B+M-key or B-key SATA (AHCI) M.2 SSDs without maximum capacity limitation.
Support of M.2 drives with a size of 2230, 2242, 2260, and 2280 mm.
Support of both one-sided and double-sided M.2 SSDs.
Compliant with Serial ATA 3.1 specification (SATA/600), bit rates of up to 6 Gb/s (600 MB/s).
Compliant with Serial ATA 2.0 specification (SATA/300), transfer rates as high as 3 Gb/s (300 MB/s).
Compliant with Serial ATA 1.0 specification (SATA/150), bit rates of up to 1.5 Gb/s (150 MB/s).
Support of TRIM functionality to limit gradual degradation of the SSD performance over time.
SSD/HDD boot support in internal box.
Full Plug and Play support.
The adapter is supplied from a standard 15-pin SATA power supply connector.
The aluminium body helps to cool the M.2 SSD.
Other data:
Internal box dimensions 100 x 70 x 7 mm.
Internal box weight 48 g (without M.2 SSD).
Supported operating systems:
MS Windows 7 / 8 / 8.1 / 10 and later, Windows Server 2008 R2 / 2012 / 2016 and later (all 32-bit and 64-bit Windows OS versions are supported), Mac OS X 10.x and higher, Linux with kernel 2.6.x and higher.
Note: This is solely a hardware reduction, no drivers are installed.
Package contains:
internal 2.5" SATA box for SATA M.2 SSD,
mounting material and a screwdriver,
printed installation manual CZ / DE / DK / ENG / ESP / FIN / FR / GR / HR / HU / IT / NL / PL / PT / RO / RU / SK / SWE / BG / CN / TR / ARA,
packed in a cardboard box with clearly indicated parameters.
