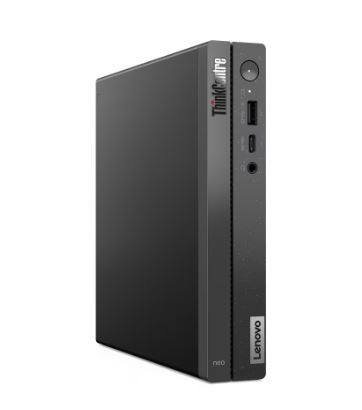

Lenovo ThinkCentre M70q Tiny Gen5 is a compact and versatile desktop computer that is very well suited for corporate standardization due to its long product lifecycle. Its diverse connectivity options and extensive accessory selection make the Tiny the most agile workhorse in the office. The Tiny workstation can dock directly to the Lenovo Tiny-in-One (TIO) display without tools, creating a convenient true AIO PC solution. As a special feature, this model includes two RJ-45 Ethernet ports.
Key Features:
- Operating System: Windows 11 Pro 64-bit
- Processor: Intel Core i5-14400T (10C/16T/20MB)
- Processor Specifications: 6xP-core 1.5/4.5GHz, 4xE-core 1.1/3.2GHz
- Chipset: Intel Q670
- Graphics: Integrated Intel UHD Graphics 730
- Memory: 1x16GB DDR5 4800MHz SODIMM
- Maximum Memory: 64GB (2x32GB)
- Storage: 512GB SSD M.2 2280 PCIe 4.0x4 NVMe Opal
- One free M.2 2280 SSD slot
- Internal 2W speaker
- Included: Lenovo USB keyboard and optical USB mouse
- LAN #1 Intel Gigabit Ethernet 100/1000
- LAN #2 Realtek 2.5 Gigabit Ethernet RTL8125BGS
- WLAN Intel Wi-Fi 6E AX211 802.11ax 2x2 + BT 5.3
- Front Panel: 2xUSB-A Gen2, 1xUSB-C 3.2 Gen1, 1x3.5mm audio combo
- Back Panel: 2xDisplayPort 1.4a (HBR2, DSC), 1xHDMI 2.1 TMDS, 1xUSB-A (USB2.0), 1xUSB-A Gen1, 2xUSB-A Gen2, RJ-45
- Internal TPM 2.0 security chip
- Kensington security lock slot (3x7mm)
- Included: VESA Mount bracket
- External power supply: 90W 89%
- Military-grade durability: MIL-STD-810H
- Basic warranty: 3 years on-site
- Weight: 1.25kg
Lenovo CO2 Offset Gen2 emission compensation
- The carbon dioxide emissions generated during the manufacturing, transportation, and electricity consumption of this device throughout its lifecycle have been compensated through the global Climeco organization, supporting UN-approved environmental projects.
Environmental and energy certifications
- ENERGY STAR® 8.0, EPEAT™ Silver Registered, ErP Lot 3/7, RoHS compliant, TCO Certified
Product life cycle used in emission assessments, years | 4 |
Product life cycle CO2 emissions, kg (manufacturer?s estimate) | 263 |
RAID-i tased | 0/1 |
RAID-i kontroller | Yes |
Operatsioonisüsteem (komplektis) | Windows 11 Pro |
Salvestusmaht | 512 GB SSD |
Sisseehitatud mälu | 16 GB |
Paigaldatud mälu maksimaalne maht, GB | 64 GB |
Pooljuhtketta tüüp | M.2 PCIe NVMe |
Protsessori seeria | Intel Core i5 |
Liidesed | Ethernet (RJ-45) |
USB-C (USB 3.2) ports quantity | 1 |
USB-A (USB 3.2) portide arv | 5 |
USB-A (USB 2.0) portide arv | 1 |
HDMI portide arv | 1 |
Ethernet LAN (RJ-45) portide arv | 1 |
DisplayPorts portide arv | 1 |
Protsessori tuumade arv | 10 |
Protsessori taktsagedus, GHz | 4.50 |
Graafika adapter | Intel UHD Graphics 730 |
Emaplaadi kiibistik | Intel Q670 |
Mälupesad (vabad) | 1 |
Protsessori mudel | Intel Core i5-14400T (Max. 4.50GHz, 20M, 10C) |
Vooluadapter, W | 90 |
Paigaldatud mälutüüp | DDR5 |
Mõõtmed W x D x H, mm | 179 x 182.9 x 36.5 |
Protsessori tootja | Intel |
Mälu taktsagedus, MHz | 4800 |
Kaal, g | 1250 |
Intel Virtualization tehnoloogia | VT-x / VT-d |
Graafikaadapteri tüüp | Intel UHD Graphics |
Bluetooth-i versioon | 5.3 |
WLAN-i tüüp | Wi-Fi 6E |
WLAN antennid | 2x2 |
Usaldusväärse platvormi mooduli (TPM) versioon | 2.0 |
Efektiivsete tuumade arv | 4 |
Esitustuumade arv | 6 |
Green certifications | TCO Certified |
Juhtmeta LAN (WLAN) | Yes |
Optiline seadme | No |
Sisseehitatud kaardilugeja | No |
Bluetooth (sinihammas) | Yes |
Intel HyperThreading tehnoloogia | Yes |
Spetsiaalne videomälu (GB) | Uses system memory |
Kaabliluku pesa | Yes |
Intel vPro | No |
