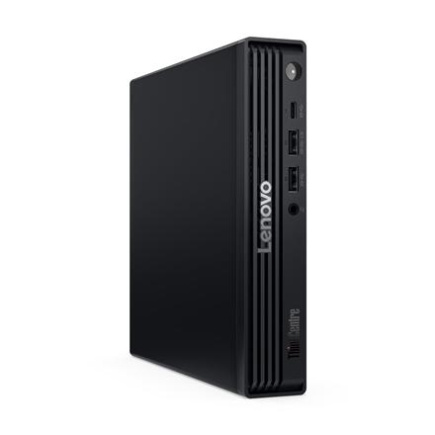

Lenovo ThinkCentre M70q Tiny Gen6 is a compact and versatile desktop computer that is very well suited for corporate standardization due to its long product lifecycle. Its diverse connectivity options and extensive accessory selection make the Tiny the most agile workhorse in the office. The Tiny workstation can dock directly to the Lenovo Tiny-in-One (TIO) display without tools, creating a convenient true AIO PC solution.
Key Features:
- Operating System: Windows 11 Pro 64-bit
- Processor: Intel Core U5-225T (10C/16T/20MB)
- Processor Specifications: 6xP-core 2.5/4.9GHz, 4xE-core 1.9/4.4GHz
- NPU Intel® AI Boost, max. 13 TOPS
- Chipset: Intel Q870
- Graphics: Integrated Intel Graphics
- Memory: 1x16GB DDR5 5600MHz SODIMM
- Maximum Memory: 64GB (2x32GB)
- Storage: 512GB SSD M.2 2280 PCIe 4.0x4 NVMe Opal
- One free M.2 2280 SSD slot
- Internal 2W speaker
- Included: Lenovo USB keyboard and optical USB mouse
- LAN Intel Gigabit Ethernet 100/1000
- WLAN Intel Wi-Fi 6E AX211 802.11ax 2x2 + BT 5.3
- Front Panel: 2xUSB-A Gen2, 1xUSB-C 3.2 Gen1, 1x3.5mm audio combo
- Back Panel: 2xDisplayPort 1.4a (HBR2), 1xHDMI 2.1 TMDS, 2xUSB-A 3.2 Gen2, 2xUSB-A 3.2 Gen1, 1xRJ-45
- Internal TPM 2.0 security chip
- Kensington security lock slot (3x7mm)
- Included: VESA Mount bracket
- External power supply: 90W 89%
- Military-grade durability: MIL-STD-810H
- Basic warranty: 3 years on-site
- Weight: 1.18kg
Lenovo CO2 Offset Gen2 emission compensation
- The carbon dioxide emissions generated during the manufacturing, transportation, and electricity consumption of this device throughout its lifecycle have been compensated through the global Climeco organization, supporting UN-approved environmental projects.
Environmental and energy certifications
- ENERGY STAR® 9.0, RoHS compliant, TCO 10.0 Certified
| Manufacturer?s estimate: Manufacturing-related CO2 emissions, kg | 189.5 |
| Manufacturer?s estimate: Product life cycle CO2 emissions, kg | 230 |
| Operatsioonisüsteem (komplektis) | Windows 11 Pro |
| Sisseehitatud mälu | 16 GB |
| Protsessori seeria | Intel Core Ultra 5 |
| Salvestusmaht | 512 GB SSD |
| Liidesed | USB-C |
| Protsessori tuumade arv | 10 |
| Graafika adapter | Intel Graphics |
| Mälupesad (vabad) | 1 |
| Paigaldatud mälu maksimaalne maht, GB | 64 GB |
| Emaplaadi kiibistik | Intel Q870 |
| Pooljuhtketta tüüp | M.2 PCIe NVMe |
| Protsessori mudel | Intel Core Ultra 5 225T (Max. 4.90GHz, 20M, 10C) |
| Vooluadapter, W | 90 |
| Protsessori tootja | Intel |
| Paigaldatud mälutüüp | DDR5 |
| Mälu taktsagedus, MHz | 5600 |
| Intel Virtualization tehnoloogia | VT-x / VT-d |
| Mälupesad | 2 |
| Mõõtmed W x D x H, mm | 179 x 182.9 x 36.5 |
| Kaal, g | 1180 |
| Ethernet LAN (RJ-45) portide arv | 1 |
| Intel Turbo Boost, GHz | 4.90 |
| Inteli nutikas vahemälu, MB | 20 |
| Graafikaadapteri tüüp | Intel Graphics |
| Bluetooth-i versioon | 5.3 |
| WLAN-i tüüp | Wi-Fi 6E |
| USB-A (USB 3.2) portide arv | 6 |
| HDMI portide arv | 1 |
| DisplayPorts portide arv | 1 |
| USB-C (USB 3.2) ports quantity | 1 |
| Esitustuumade arv | 6 |
| Efektiivsete tuumade arv | 4 |
| Usaldusväärse platvormi mooduli (TPM) versioon | 2.0 |
| WLAN antennid | 2x2 |
| Green certifications | TCO 10.0 |
| Kõlariväljund / kõrvaklapiväljund / line-out väljund | 1 |
| Kõlari võimsus, W | 2 |
| Copilot+PC | No |
| Juhtmeta LAN (WLAN) | Yes |
| Optiline seadme | No |
| Sisseehitatud kaardilugeja | No |
| RAID-i kontroller | No |
| Bluetooth (sinihammas) | Yes |
| Intel HyperThreading tehnoloogia | NO |
| Intel vPro | No |
| Spetsiaalne videomälu (GB) | Uses system memory |
| Kaabliluku pesa | Yes |
| Wi-Fi | Yes |
| Sisseehitatud kõlarid | Yes |
| Operatsioonisüsteemi keel | Swedish |
| NPU | Yes |
