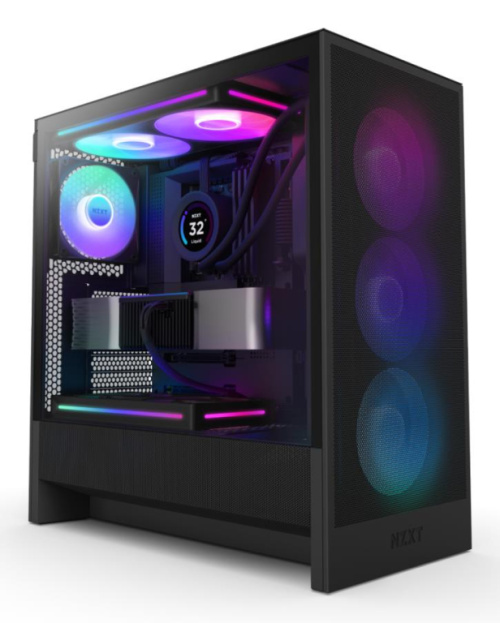

H5 FLOW RGB 2024 | PC | Midi Tower | Black | Material Tempered glass/SGCC | Supported mainboards ATX/micro ATX/Mini-ITX/EATX | 7xNumber of expansion slots | Side window Yes | Illumination Yes | Anti-dust filter Yes | Supported HDD sizes 2.5/3.5 " | Weight 7.63 kg
| Kirjeldus | The H5 Flow RGB boosts airflow and GPU cooling with its perforated PSU shroud, mesh panels, and large radiator support—all in a compact mid-tower form factor.
More Air to the GPU Mesh PSU shroud maximizes air intake from two 120mm bottom-mounted fans (not included).
Fits Large Radiators Supports a 360mm radiator in front and a 240mm radiator up top for powerful liquid cooling setups.
Optimized for Airflow Ultra-fine mesh panels facilitate exceptional airflow and help filter pesky dust particles.
Pre-Installed Fans Front-mounted F360 RGB Core fan and rear F120Q fan for out-of-the-box cooling and lighting. *Case Version (3-pin DC)
Easy Cable Management Effortlessly route and conceal cables using the wide channels, hooks, and straps.
Tool-less Access Easily open up the front, side, and top panels without any tools.
Strong and Sleek Crafted from thick steel and tempered glass for long-lasting quality.The PSU shroud is perforated on the side and bottom, enabling optimal air intake from two 120mm fans (not included)Supports up to a 360mm radiator in front and a 240mm radiator up top for powerful liquid cooling potentialUltra-fine mesh on the top, front, and side panels creates maximum airflow and filters dustEquipped with a front-mounted F360 RGB Core (CV) single-frame fan and rear-mounted F120Q (CV) fan for strong out-of-the-box cooling and lightingEffortlessly route and conceal cables using the wide channels, hooks, and straps |
| Summary | NZXT H5 Flow RGB. Form factor: Midi Tower, Type: PC, Product colour: Must. Front fans installed: 3x 120 mm, Front fans diameters supported: 120,140 mm, Rear fans installed: 1x 120 mm. Supported HDD sizes: 2.5,3.5". Width: 225 mm, Depth: 430 mm, Height: 465 mm. Noise level: 23.3 dB, Fan connector: 3-pin |
| Tootja lehekülg | https://nzxt.com/product/h5-flow-rgb |
| Kategooria kood | CAS |
| Üksuse kasti kõrgus | 0.53 |
| Üksuse kasti pikkus | 0.56 |
| Üksuse kasti laius | 0.31 |
| Tolmuvastane filter | Yes |
| Kaabli haldus | Yes |
| Kujutegur | Midi Tower |
| Valgustus | Yes |
| Valgustuse värv | Multi |
| Valgustuse asukoht | case fans |
| Materjal | SGCC/Tempered glass |
| Protsessori jahuti maksimaalne kõrgus | 175 mm |
| Maksimaalne graafikakaardi pikkus | 410 mm |
| Maksimaalne PSU pikkus | 200 mm |
| 2,5" lahtrite arv | 2 |
| 3,5" lahtrite arv | 1 |
| Laienduspesade arv | 7 |
| Sisse/välja nupp | Yes |
| Toote värv | Must |
| Küljeaken | Yes |
| Sobilik | Gaming |
| Toetatud emaplaadi vormitegurid | ATX/EATX/micro ATX/Mini-ITX |
| Karastatud klaaspaneelid | Yes |
| Tüüp | PC |
| Toiteplokk kaasas | No |
| Audio sisend | Yes |
| Heliväljund | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A portide arv | 1 |
| USB 3.2 Gen 2x2 Type-C portide arv | 1 |
| Toetatud alumiste ventilaatorite läbimõõt | 120 mm |
| Fan 2 maximum air pressure | 1.05 mmH2O |
| Fan 2 maximum airflow | 60.2 cfm |
| Ventilaatori kiirus | 1350 - 1700 RPM |
| Toetatud esiventilaatorite läbimõõt | 120/140 mm |
| Paigaldatud eesmised ventilaatorid | 3x 120 mm |
| Toetatud eesmised radiaatori suurused | 360 mm |
| Vedelikjahutusvõime | Yes |
| Maksimaalne õhurõhk | 1.27 mmH2O |
| Maksimaalne õhuvool | 50.1 cfm |
| Toetatud alumiste ventilaatorite arv (max) | 2 |
| Toetatud eesmiste ventilaatorite arv (max) | 3 |
| Toetatud tagumiste ventilaatorite arv (max) | 1 |
| Toetatud parimate fännide arv (max) | 2 |
| Toetatud tagumiste ventilaatorite läbimõõt | 120 mm |
| Paigaldatud tagumised ventilaatorid | 1x 120 mm |
| Toetatud ülemiste ventilaatorite läbimõõt | 120/140 mm |
| Toetatud suurimad radiaatori suurused | 240 mm |
| Toetatud HDD suurused | 2.5/3.5 " |
| Juhend | Yes |
| Sügavus (paksus) | 430 mm |
| Kõrgus | 465 mm |
| Kaal | 7630 g |
| Laius | 225 mm |
| Ventilaatori pistik | 3-pin |
| Müratase | 23.3 dB |
| Mudeli nimetus | H5 FLOW RGB 2024 |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.09201 cubm |
| Unit Calculated Weight | 9.6 kg |
