Intel Z790 | LGA1700 | ATX | DDR5 | 7200/7000/6800/6600/6400/6200/6000/5800/5600/5400/5200/5000/4800 MHz | Memory slots 4 | 2xPCI-Express 3.0 1x | 1xPCI-Express 4.0 4x | 1xPCI-Express 4.0 16x | 1xPCI-Express 5.0 16x | 4xM.2 | 1xHDMI | 1xDisplayPort | 6xUSB 3.2 | 2xUSB-C | 1xRJ45 | 3xAudio port | SATA | USB 3.2 | Bluetooth | WiFi | Video Depending on CPU | LAN 2.5 Gigabit | Audio | RAID SATA 0, 1, 5, 10; NVMe 0, 1, 5, 10 | TPM Header

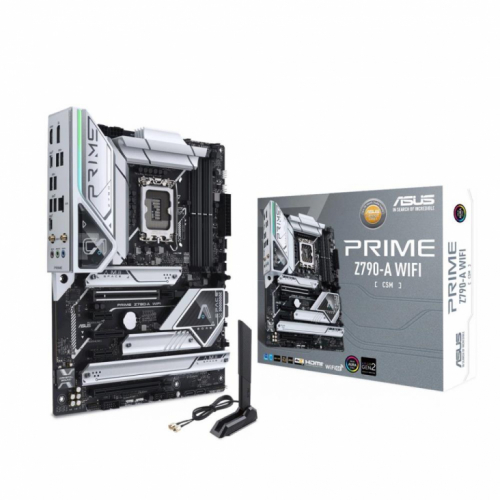

Kirjeldus | ASUS Prime series motherboards are expertly engineered to unleash the full potential of 13th Gen Intel® Core™ Processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME Z790-A WIFI provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.
The ASUS PRIME Z790-A WIFI offers this all in a sleek, futuristic-looking package centered around a spaceship design aesthetic, with a silver-toned nameplate and chipset cover. |
Tootja lehekülg | www.asus.com/Motherboards-Components/Motherboards/PRIME/PRIME-Z790-A-WIFI/ |
Mudel | PRIME Z790-A WIFI |
Kiibistik | Intel Z790 |
Socket | LGA1700 |
Kujutegur | ATX |
Mälutüüp | DDR5 |
Mälusiini sagedus | 4800/5000/5200/5400/5600/5800/6000/6200/6400/6600/6800/7000/7200 MHz |
Mälupesad | 4 |
M.2 | 4 |
PCI-Express 3.0 1x | 2 |
PCI-Express 4.0 16x | 1 |
PCI-Express 4.0 4x | 1 |
PCI-Express 5.0 16x | 1 |
Helipordid | 3 |
DisplayPort | 1 |
HDMI | 1 |
RJ45 | 1 |
USB 3.2 | Yes |
USB-C | 2 |
Bluetooth (sinihammas) | Yes |
SATA | Yes |
WiFi | Yes |
Integreeritud videokaart | Depending on CPU |
Integreeritud võrgukaart | 2.5 Gigabit |
Integreeritud helikaart | Yes |
RAID | SATA 0, 1, 5, 10; NVMe 0, 1, 5, 10 |
TPM-moodul | Header |
Kaal | 1.5 kg |
Brutokaal | 2.13 kg |
Üksuse kasti laius | 0.07 |
Üksuse kasti pikkus | 0.34 |
Üksuse kasti kõrgus | 0.275 |
Täiskirjeldus | Intel Z790|LGA1700|ATX|DDR5|7200/7000/6800/6600/6400/6200/6000/5800/5600/5400/5200/5000/4800 MHz|Memory slots 4|2xPCI-Express 3.0 1x|1xPCI-Express 4.0 4x |1xPCI-Express 4.0 16x|1xPCI-Express 5.0 16x|4xM.2|1xHDMI|1xDisplayPort|6xUSB 3.2|2xUSB-C|1xRJ45|3xAudio port|SATA|USB 3.2|Bluetooth|WiFi|Video Depending on CPU|LAN 2.5 Gigabit|Audio|RAID SATA 0, 1, 5, 10; NVMe 0, 1, 5, 10|TPM Header |
Kategooria kood | MBI |
