Intel Z890 | LGA1851 | ATX | DDR4 | 9200/7200/6400/4800 MHz | Memory slots 4 | 1xPCI-Express 4.0 1x | 2xPCI-Express 4.0 4x | 1xPCI-Express 5.0 16x | 4xM.2 | 1xHDMI | 1xDisplayPort | 4xUSB 2.0 | 3xUSB 3.2 | 1xUSB-C | 1xUSB-C w/Thunderbolt | 1xPS/2 | 1xRJ45 | 3xAudio port | SATA | USB-C | USB 2.0 | USB 3.2 | Thunderbolt | Bluetooth | WiFi | Video Depending on CPU | LAN 5 Gigabit | Audio Realtek ALC897 | RAID SATA 0, 1, 5, 10; NVMe 0, 1, 5, 10 | TPM Header

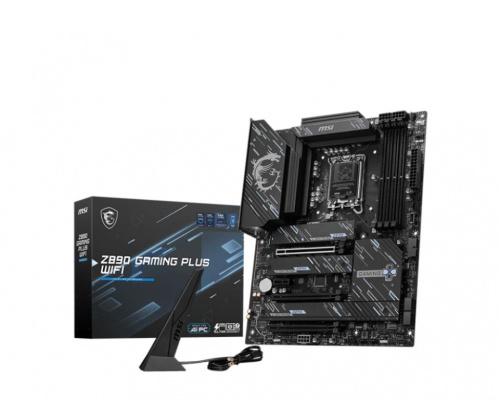

Kirjeldus | Z890 GAMING PLUS WIFI is designed with durable components to provide great gaming experience. Designed with Killer Wi-Fi 7 and 5G LAN, Thunderbolt 4, PCIe 5.0 solutions, Supplemental PCIe Power and exclusive EZ DIY features, it's ready for 24/7 non-stop gaming of Intel Core Ultra processors.
- Support Intel® Core™ Ultra Processors (Series 2) for LGA 1851 socket
- Supports DDR5 Memory, Dual Channel DDR5 9200+ MT/s (OC)
- Ultra Performance: 14+1+1+1 Duet Rail Power System 55A DrMOS, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 6-layer PCB made by 2oz thickened copper and server-grade level material
- Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience
- EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna
- Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2
- Ultra Connect: Thunderbolt™ 4 port, Intel® Killer™ 5G LAN & Intel® Killer™ Wi-Fi 7 Solution - the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
- Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience
|
Tootja lehekülg | www.msi.com/Emaplaat/Z890-GAMING-PLUS-WIFI |
Mudel | Z890 GAMING PLUS WIFI |
Kiibistik | Intel Z890 |
Socket | LGA1851 |
Kujutegur | ATX |
Mälutüüp | DDR4 |
Mälusiini sagedus | 4800/6400/7200/9200 MHz |
Mälupesad | 4 |
M.2 | 4 |
PCI-Express 4.0 1x | 1 |
PCI-Express 4.0 4x | 2 |
PCI-Express 5.0 16x | 1 |
Helipordid | 3 |
DisplayPort | 1 |
HDMI | 1 |
PS/2 | 1 |
RJ45 | 1 |
USB 2.0 | Yes |
USB 3.2 | Yes |
USB-C | Yes |
USB-C koos Thunderboltiga | 1 |
Bluetooth (sinihammas) | Yes |
SATA | Yes |
Äike | Yes |
WiFi | Yes |
Integreeritud videokaart | Depending on CPU |
Integreeritud võrgukaart | 5 Gigabit |
Integreeritud helikaart | Realtek ALC897 |
RAID | SATA 0, 1, 5, 10; NVMe 0, 1, 5, 10 |
TPM-moodul | Header |
Kaal | 2 kg |
Brutokaal | 2.14 kg |
CnCode | 84733020 |
Üksuse kasti laius | 0.275 |
Üksuse kasti pikkus | 0.345 |
Üksuse kasti kõrgus | 0.072 |
Täiskirjeldus | Intel Z890|LGA1851|ATX|DDR4|9200/7200/6400/4800 MHz|Memory slots 4|1xPCI-Express 4.0 1x|2xPCI-Express 4.0 4x |1xPCI-Express 5.0 16x|4xM.2|1xHDMI|1xDisplayPort|4xUSB 2.0|3xUSB 3.2|1xUSB-C|1xUSB-C w/Thunderbolt|1xPS/2|1xRJ45|3xAudio port|SATA|USB-C|USB 2.0|USB 3.2|Thunderbolt|Bluetooth|WiFi|Video Depending on CPU|LAN 5 Gigabit|Audio Realtek ALC897|RAID SATA 0, 1, 5, 10; NVMe 0, 1, 5, 10|TPM Header |
Kategooria kood | MBI |
