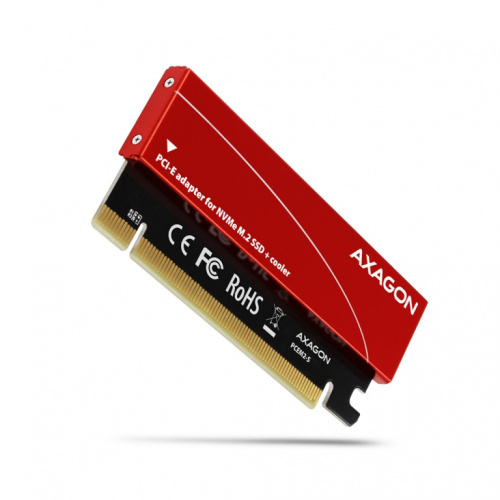

The internal AXAGON PCEM2-S adapter allows to connect the M.2 SSD to a desktop coputer using PCI-Express bus.

High-quality construction, compact dimensions, attractive design and sophisticated cooling make the adapter an ideal choice for upgrading a desktop computer that is not equipped with any M.2 slot.

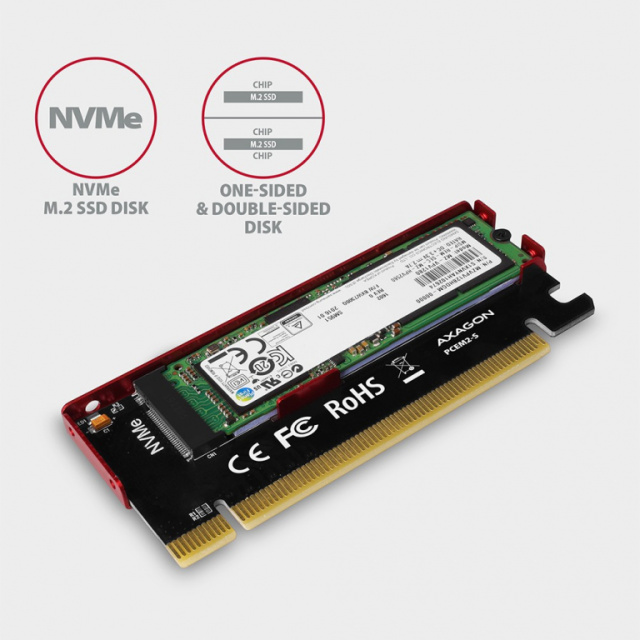

The adapter supports the use of both one-sided and double-sided NVMe (PCI-Express) M.2 SSDs. The reduction does not limit SSD capacity, and any M.2 cards with a size up to 22x80 mm can be used.

Thanks to PCI-Express interface, a maximum transmission rates can be achieved.

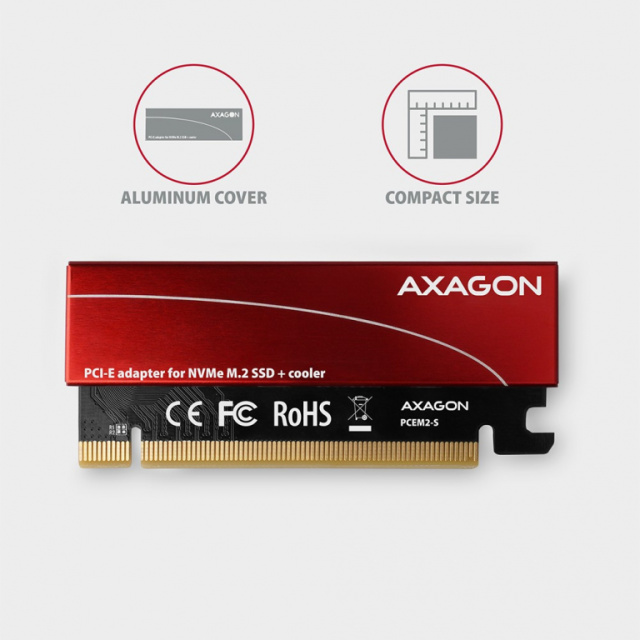

The aluminum cover functioning as a cooler and the attached thermally conductive pads help to cool the M.2 SSD.  As a result, an ideal combination of M.2 SSD cooling and heat discharging is achieved.

LED indicates either power on or data transfer in the M.2 slot.

Input:
PCI-Express interface, compatible version PCI-Express: 4.0 / 3.0 / 2.1 / 2.0 / 1.1 / 1.0a.
Number of 4-Lane lines compatible with x16 PCIe slots.

Output:
NGFF 75-pin M-key slot for the installation of NVMe (PCI-Express) of M.2 SSD.

Other features:
Full Plug and Play support.
Support of M.2 drives with a size of 2230, 2242, 2260, and 2280 mm.
Support of M-key or B+M-key NVMe (PCI-Express) M.2 SSDs drives without limitation of maximum capacity.
Support of both one-sided and double-sided M.2 drives.

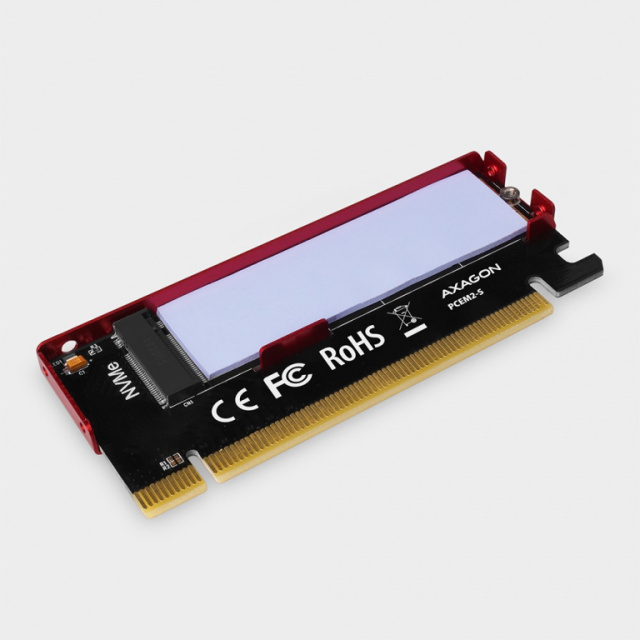

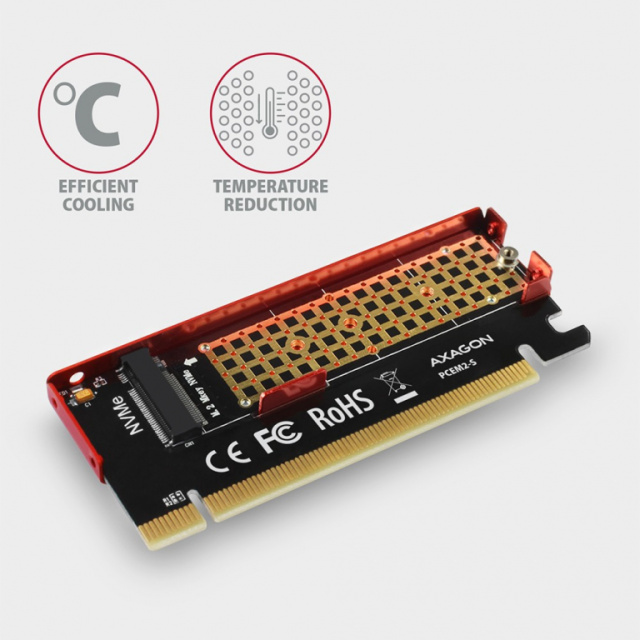

A better heat discharge thanks to plated vents, thermally conductive pads and aluminum cover.
Support of booting from SSD card.
Dimensions 103 x 40 x 8 mm.
Weight 32 g.
No drivers need to be installed.

Power supply:
The adapter is directly supplied from PCI-Express bus; no external power supply is needed.

Supported operating systems:
MS Windows 7 / 8 / 8.1 / 10, Windows Server 2008 R2 / 2012 / 2016 (all 32-bit as well as 64-bit versions of OS Windows are supported), Linux with kernel 2.6.31 and higher.
Note: When operating under Windows 7, contact the manufacturer of the M.2 SSD to find whether this OS is supported.

Package contains:
PCIe adapter for M.2 NVMe (PCI-Express) SSD with the aluminum cover,
3 thermally conductive pads,
mounting material and a screwdriver,
printed installation manual CZ / DE / DK / ENG / ESP / FIN / FR / GR / HR / HU / IT / NL / PL / PT / RO / RU / SK / SWE / TR / BG / CN / ARA,
packed in a cardboard box.
