23.8 " | 1920 x 1080 pixels | Full HD | 16:9 | LCD | IPS | Touchscreen Yes | 8 ms | Flat | Contrast 1000:1 | Maximum refresh rate 60 Hz | Pixel pitch 0.2745 x 0.2745 mm | Built-in speaker(s) Yes | 1xHDMI ports quantity | 1xDisplayPorts quantity | Headphone out Yes | VESA Yes
| Kirjeldus | 23.8-inch monitor puts productivity in reach with its touch screen, superior connectivity and articulating stand.60.5cm (23.8") Full HD 1920 x 1080 LED IPS8ms, 16:9, 300cd/m², 1000:1USB, HDMI, DisplayPortActual configuration might differ from illustration
Product Carbon Footprint (PCF):
1. Dell generally uses the PAIA (Product Attribute to Impact Algorithm)(http://msl.mit.edu/projects/paia/main.html) tool for product carbon footprint calculations.
2. Docking station related PCFs are extracted from corresponding LCAs and as such do not follow the PAIA methodology used for calculating other PCFs in this report.
3. PAIA method is developed by the Massachusetts Institute of Technology’s Materials Systems Laboratory and partners.
4. All estimates of carbon footprint are uncertain. Dell Technologies reports the 5th and 95th percentile of the carbon footprint estimate to reflect this uncertainty wherever possible. (https://www.dell.com/en-us/dt/corporate/social-impact/advancing-sustainability/climate-action/product-carbon-footprints.htm#tab0=0)
5. Please note the emission estimate in this report is calculated using the mean value along with the standard deviation for that product model.
6. Use of default inputs (i.e. not primary data) and assumptions on location of use and other fields can introduce a standard deviation which must be taken into account while completing the calculations.
7. Please note, PAIA uses the ecoinvent Database (https://ecoinvent.org/the-ecoinvent-database/)whenever primary data is not made available for calculations.
8. For client and commercial end user computing products, minimum configurations were assumed for calculations. For Server and Storage products, typical configurations or ENERGY STAR (https://www.energystar.gov/products) configurations were used for calculations.
9. Use Phase emissions were calculated based on the location of use as "Europe" i.e. the Use Phase emissions are not specific to a single country / location.
10. The report does provide an option for a total emissions number for manufacturing, transport and end of life while leaving the use phase emissions out, in case the customer uses their own calculation methodology for use phase emissions.
11. The lifetime usage assumption at the product family level is as follows: Desktop, Notebook - 4 years, Display - 5 years and Servers - 4 years.
12. For detailed assumptions please refer to the product datasheets in the Dell Technologies reports (https://www.dell.com/en-us/dt/corporate/social-impact/advancing-sustainability/climate-action/product-carbon-footprints.htm#tab0=0).
13. The results from the PAIA tool are liable to change over time as the methodology is improved and datasets are updated. The PAIA version used to calculate emissions has been indicated with each record in the report.
14. Metrics used: The units for global warming potential are in kgCO2-equivalent or MT (metric ton) CO2-equivalent (CO2e).
15. Beginning in June 2024, the data dashboard now incorporates PCF values computed using the Dell PCF calculator. It’s important to note that the default location utilized for these calculations shown on the data dashboard is Europe. To access PCF values calculated for the USA and China locales, please refer to the Product PCF PDF document on Dell.com. |

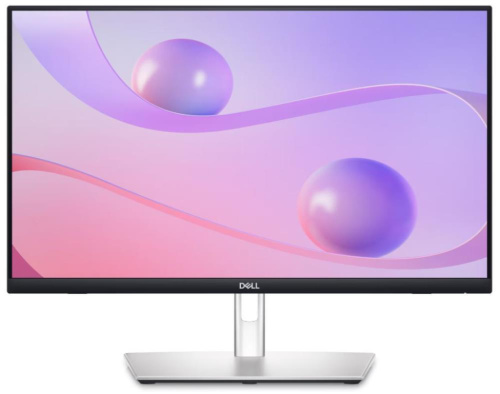

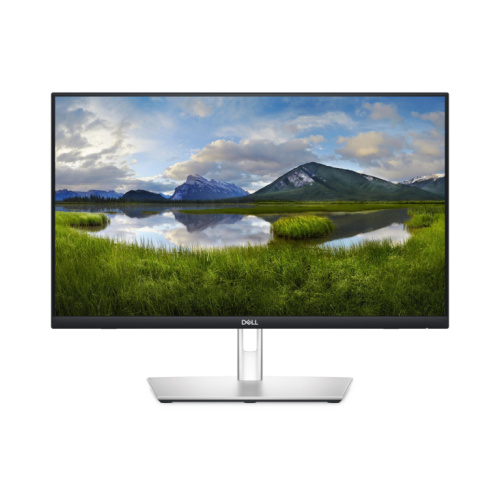

| Summary | DELL P Series P2424HT. Display diagonal: 60.5 cm (23.8"), Display resolution: 1920 x 1080 pixels, HD type: Full HD, Display technology: LCD, Response time: 8 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in speaker(s). Built-in USB hub, USB hub version: 3.2 Gen 1 (3.1 Gen 1). VESA mounting, Height adjustment. Product colour: Must, Silver |
| Tootja lehekülg | https://www.dell.com/en-uk/shop/ |
| Kategooria kood | LC3 |
| Üksuse kasti kõrgus | 0.4 |
| Üksuse kasti pikkus | 0.77 |
| Üksuse kasti laius | 0.16 |
| Pimestamisvastane ekraan | Yes |
| Taustvalgustuse tüüp | LED |
| Värvi skaneeringusügavus | 6 bit |
| Kontrastsuse suhe (tavaline) | 1000:1 |
| Ekraani heledus (tavaline) | 300 cd/m² |
| Ekraani diagonaal | 23.8 " |
| Ekraani diagonaal (meetriline) | 60.47 cm |
| Kuvatavate värvide arv | 16.78 million colours |
| Ekraani resolutsioon | 1920 x 1080 pixels |
| Ekraani tehnoloogia | LCD |
| Ekraani HD resolutsioon | Full HD |
| Toetatud kõrge dünaamiline ulatus (HDR). | No |
| Horisontaalne skaneerimise ulatus | 30 - 88 kHz |
| Maksimaalne värskendussagedus | 60 Hz |
| Algne kuvasuhe | 16:9 |
| Paneeli tüüp | IPS |
| Pikslitihedus | 93 ppi |
| Pikslite mõõt | 0.2745 x 0.2745 mm |
| Reageerimisaeg | 8 ms |
| Reageerimisaeg (kiire) | 5 ms |
| Ekraani kuju | Flat |
| sRGB leviala (tavaline) | 99 % |
| Toetatud videorežiimid | 1080i/1080p/480p/576p/720p |
| Pinna kõvadus | 3H |
| Puutetundlik | Yes |
| Vertikaalne skaneerimise vahemik | 48 - 75 Hz |
| Vaadatava suurusega diagonaal | 604.7 mm |
| Vaadatav suurus, horisontaalne | 527.04 mm |
| Vaadatav suurus, vertikaalne | 296.46 mm |
| Vaatenurk, horisontaalne | 178 ° |
| Vaatenurk, vertikaalne | 178 ° |
| Madala sinise valguse tehnoloogia | Yes |
| Integreeritud kaamera | No |
| Sisseehitatud kõlar (id) | Yes |
| RMS nimivõimsus | 3 W |
| Jalade värv | Silver |
| Esipaneeli värv | Must |
| Turu positsioneerimine | Business |
| Toote värv | Must,Silver |
| AC (toide) sisse | Yes |
| Integreeritud USB jagaja | Yes |
| DisplayPort versioon | 1.2 |
| DisplayPorts portide arv | 1 |
| HDCP | Yes |
| HDCP versioon | 1.4 |
| HDMI | Yes |
| HDMI portide arv | 1 |
| HDMI versioon | 1.4 |
| Kõrvaklappide ühenduvus | 3.5 mm |
| Kõrvaklappide väljund | Yes |
| Mikrofon sees | No |
| C-tüüpi USB ülesvoolu portide arv | 1 |
| PC heli sisend | No |
| USB-jaoturi versioon | 3.2 Gen 1 (3.1 Gen 1) |
| USB Power Delivery (USB PD) | Yes |
| USB-toite tarne kuni | 90 W |
| USB Type-A downstream portide arv | 2 |
| C-tüüpi USB DisplayPort alternatiivrežiim | Yes |
| USB Type-C downstream portide arv | 1 |
| USB ülesvoolu pordi tüüp | USB Type-C |
| Wi-Fi | No |
| Adjustable height (max) | 110.52 mm |
| Kaabliluku pesa | Yes |
| Kaabliluku pesa tüüp | Kensington |
| Kaabli haldus | Yes |
| Jala kõrguse muutmine | Yes |
| LED-indikaatorid | Yes |
| Ekraanikuva (OSD) | Yes |
| Paneeli paigaldusliides | 100 x 100 mm |
| PIVOT funktsioon | No |
| Plug and Play | Yes |
| Pöördenurga vahemik | -30 - 30 ° |
| Pöörlev | Yes |
| Kalde reguleerimine | Yes |
| Kaldenurga vahemik | -5 - 60 ° |
| VESA kinnitus | Yes |
| AC sisendsagedus | 50/60 Hz |
| AC sisendpinge | 100 - 240 V |
| Energiatarve (SDR) 1000 tunni kohta | 18 kWh |
| Energiatõhususe klass (HDR) | Not available |
| Energiatõhususe klass (SDR) | E |
| Energiatõhususe skaala | A to G |
| European Product Registry for Energy Labelling (EPREL) code | 1465328 |
| Energiatarve (max) | 190 W |
| Energiatarve (väljas) | 0.3 W |
| Energiatarve (ooterežiim) | 0.5 W |
| Energiatarve (tavaline) | 18 W |
| Vooluadapteri tüüp | Internal |
| Mittetöötav kõrgus merepinnast | 5000 - 12192 m |
| Töökõrgus | 0 - 5000 m |
| Töö suhteline õhuniiskus (HH) | 10 - 80 % |
| Töötemperatuur (TT) | 0 - 40 °C |
| Ladustamise suhteline õhuniiskus (HH) | 5 - 90 % |
| Säilitustemperatuur (TT) | -20 - 60 °C |
| Raami laius (alumine) | 18.65 mm |
| Raami laius (külg) | 5.88 mm |
| Raami laius (ülemine) | 5.87 mm |
| Sügavus (koos alusega) | 248.87 mm |
| Sügavus (ilma aluseta) | 54.1 mm |
| Kõrgus (koos alusega) | 431.5 mm |
| Kõrgus (ilma aluseta) | 320.98 mm |
| Toode kaal alusega | 7860 g |
| Kaal (ilma aluseta) | 3860 g |
| Laius (koos alusega) | 538.8 mm |
| Laius (ilma aluseta) | 538.8 mm |
| Kaal koos pakendiga | 10780 g |
| Kaablid komplektis | AC/DisplayPort/USB Type-A to USB Type-C/USB Type-C to USB Type-C |
| DisplayPorti kaabli pikkus | 1.8 m |
| Toiteadapter kaasas | Yes |
| Lühike juhend | Yes |
| Komplektis kaugjuhtimispult | No |
| Statiiv kaasas | Yes |
| Pliiats kaasas | No |
| Ei sisalda | PVC/BFR |
| Jätkusuutlikkuse sertifikaadid | ENERGY STAR |
| Jätkusuutlikkuse järgimine | Yes |
| Carbon emissions, end-of-life (kg of CO2e) | 6.314 |
| Carbon emissions, energy usage (kg of CO2e) | 176.953 |
| Carbon emissions, logistics (kg of CO2e) | 53.237 |
| Carbon emissions, manufacturing (kg of CO2e) | 396.877 |
| PAIA version | 1.3.2, 2022 |
| Total carbon emissions, standard deviation (kg of CO2e) | 149 |
| Total carbon emissions, w/o use phase (kg of CO2e) | 456.047 |
| Total carbon footprint (kg of CO2e) | 633 |
| Compliance certificates | RoHS |
| Raskmetallide vaba | Hg (mercury) |
| RJ-45 portide kogus | 1 |
| Data Sheet (Link) | https://eprel.ec.europa.eu/api/product/1465328/fiches?language=EN |
| Energiatõhususe klass | E |
| EPREL Registration Number | 1465328 |
| EPREL Version Number | 2 |
| Unit Calculated Volume | 0.04928 cubm |
| Product Net Weight | 7.86 kg |
| Unit Calculated Weight | 11 kg |
