Case Type 1U rack | Socket LGA1700 | CPU Model Number E-2434 | Clock speed 3400 MHz | Installed CPUs 1 | Maximum number of CPUs 1 | 6x2.5" SAS/SATA Hot-swap | Memory type DDR5 | Memory features UDIMM/ECC | Memory slots 4 | RAID PERC H355 Adapter, Low Profile | NIC On-Board LOM | PSU Hot-swap | PSU model code Titanium PSU Configuration ONLY FOR 200-240Vac | PSU Output Power 700 Watts | Installed PSUs 1 | Server management iDRAC9, Basic (16GEN) | Included Accessories 1U/2U Static Rails for 2-Post and 4-Post Racks
Tootja lehekülg | chrome-extension://efaidnbmnnnibpcajpcglclefindmkaj/https://www.delltechnologies.com/asset/en-us/products/servers/technical-support/poweredge-r260-technical-guide.pdf |

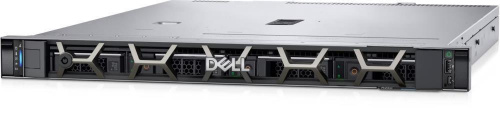

Kirjeldus | PowerEdge R260 Server
Emaplaat with Broadcom 5720 Dual Port 1Gb On-Board LOM
Intel Xeon E-2434 3.4GHz, 12M Cache, 4C/8T, Turbo HT (55W), DDR5
PERC H355 Adapter, Low Profile
Chassis with up to 6x2.5" Hot Plug Hard Drives
No RAM (UDIMM, DDR-5, ECC)
No SAS/SATA (HDD/SSD max 46.08TB)
PSU Hot Plug Single 700W MM HLAC (ONLY FOR 200-240Vac), Titanium
iDRAC9, Basic (16GEN)
Riser Config 1, Gen4
TPM 2.0 V3
3Yr Basic Next Business Day Warranty
Accessories:
1U Standard Bezel
1U/2U Static Rails for 2-Post and 4-Post Racks
2x Power Cord C13 to C14, PDU Style, 10 AMP, 4m
Factory Settings:
Performance Optimized
Power Saving BIOS Settings
UEFI BIOS Boot Mode with GPT Partition
|
Mudel | PowerEdge R260 |
Korpuse standard | 1U rack |
Socket | LGA1700 |
Protsessori mudel | E-2434 |
Protsessori kiirus | 3400 MHz |
Paigaldatud protsessorid | 1 |
Maksimaalne protsessorite arv | 1 |
2.5" SAS/SATA käigultvahetuse toetusega | 6 |
Mälutüüp | DDR5 |
Mälumooduli tüüp | UDIMM/ECC |
Mälupesad | 4 |
RAID | PERC H355 Adapter, Low Profile |
NIC-port | On-Board LOM |
Toiteplokk | Hot-swap |
PSU mudeli kood | Titanium PSU Configuration ONLY FOR 200-240Vac |
Toiteplokki väljundvõimsus | 700 Watts |
Paigaldatud toiteallikad | 1 |
Maksimaalne toiteallikate arv | 1 |
Serveri haldamine | iDRAC9, Basic (16GEN) |
Tarvikud komplektis | 1U/2U Static Rails for 2-Post and 4-Post Racks |
Kaal | 11 kg |
Brutokaal | 15.6 kg |
CnCode | 84715000 |
Üksuse kasti laius | 0.59 |
Üksuse kasti pikkus | 0.78 |
Üksuse kasti kõrgus | 0.25 |
Täiskirjeldus | Case Type 1U rack|Socket LGA1700|CPU Model Number E-2434|Clock speed 3400 MHz|Installed CPUs 1|Maximum number of CPUs 1|6x2.5" SAS/SATA Hot-swap|Memory type DDR5|Memory features UDIMM/ECC|Memory slots 4|RAID PERC H355 Adapter, Low Profile|NIC On-Board LOM|PSU Hot-swap|PSU model code Titanium PSU Configuration ONLY FOR 200-240Vac|PSU Output Power 700 Watts|Installed PSUs 1|Server management iDRAC9, Basic (16GEN)|Included Accessories 1U/2U Static Rails for 2-Post and 4-Post Racks |
Kategooria kood | SER |
