Type HDTV/Megapixel | Video interface HDCVI | Sensor size 5MP CMOS | Focal Length 2.8 mm | Lens Mount M12 | Min. Illumination 0.001 Lux | Effective pixels 2880 (H) × 1620 (V) | Electronic Shutter Speed PAL:1/3 s–1/100,000 s ; NTSC:1/4 s–1/100,000 s | Microphone Built-in | Power supply requirements 12 V ±30% DC | Colour White | Dimensions 198.4 × 80.2 × 76.2 mm
Kirjeldus | HAC-HFW1509TLM(-A)-LED

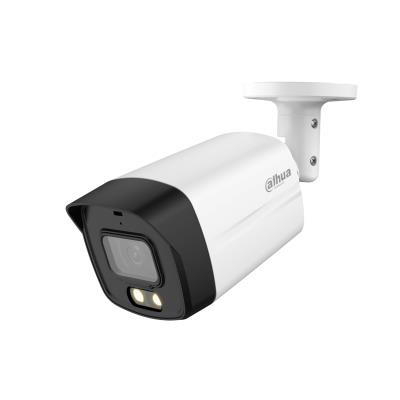

5MP Full-color HDCVI Bullet Camera
> Max 25 fps@5MP (16:9 video output)
> 120 dB true WDR, 3D NR
> 24/7 color imaging
> 40 m illumination distance
> CVI/CVBS/AHD/TVI switchable
> Built-in mic (-A)
> 3.6 mm fixed lens (2.8 mm optional)
> IP67, 12 V DC |
Tootja lehekülg | www.dahuasecurity.com/products/All-Products/HDCVI-Cameras/Lite-Series/5MP/Full-color/HAC-HFW1509TLM(-A)-LED=S2 |
Mudel | HAC-HFW1509TLM-A-LED-0280B-S2 |
Kaamera disain | Bullet |
Võrgukaamera tüüp | HDTV/Megapixel |
Videoliides | HDCVI |
Efektiivseid megapiksleid | 5 Mega Pixel |
Võrgukaamera eraldusvõime | 5 - 7MP |
Sensori suurus | 5MP CMOS |
Objektiivi fokaalvahemik | 2.8 mm |
Objektiivikinnitus | M12 |
Minimaalne valgustus | 0.001 Lux |
IR valgustus | Yes |
Efektiivsed pikslid | 2880 (H) × 1620 (V) |
Elektrooniline säriaeg | PAL:1/3 s–1/100,000 s ; NTSC:1/4 s–1/100,000 s |
Mikrofoon | Built-in |
Toitevalikud | 12V |
Toiteadapteri/ploki nõue | 12 V ±30% DC |
Energiatarbimine | 6.4 Watts |
Keskkond | Outdoor |
Värvus | White |
Mõõtmed (füüsilised parameetrid) | 198.4 × 80.2 × 76.2 mm |
Kaal | 0.33 kg |
Brutokaal | 0.52 kg |
Üksuse kasti laius | 0.115 |
Üksuse kasti pikkus | 0.24 |
Üksuse kasti kõrgus | 0.11 |
Täiskirjeldus | Type HDTV/Megapixel|Video interface HDCVI|Sensor size 5MP CMOS|Focal Length 2.8 mm|Lens Mount M12|Min. Illumination 0.001 Lux|Effective pixels 2880 (H) × 1620 (V)|Electronic Shutter Speed PAL:1/3 s–1/100,000 s ; NTSC:1/4 s–1/100,000 s|Mikrofon Built-in|Power supply requirements 12 V ±30% DC|Colour White|Dimensions 198.4 × 80.2 × 76.2 mm |
Kategooria kood | HSC |
