Type Fixed/HDTV/Megapixel/Outdoor | Video interface HDCVI | Focal Length 3.6 mm | Lens Mount M12 | Min. Illumination 0.005 Lux | Electronic Shutter Speed PAL: 1/25s–1/100000s ;NTSC: 1/30s–1/100000s | Microphone Built-in | Power supply requirements 12 VDC
Kirjeldus | 1/2.7" 5 Megapixel CMOS, 2592×1944 @ 20FPS max
1-channel BNC high definition video output / CVBS video output (Can switch)
3.6mm fixed lens, viewing angle: 92°
Sensitivity: 0.005 Lux/F1.6, 30IRE, 0 Lux IR on
2D DNR, True Day / Night with ICR Filter, BLC / HLC / DWDR
Smart IR LED up to 80 m
Built-in Mic

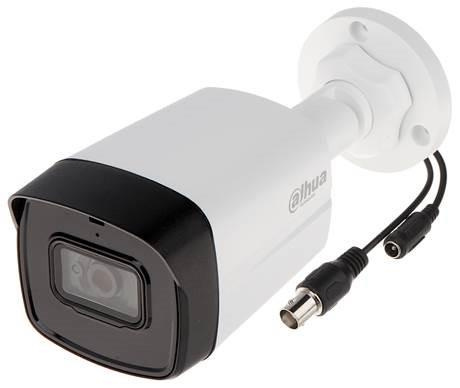

Bullet design (metal/plastic), IP67, outdoor/indoor use, -40°C~+60°C
Power 12 VDC, 5.2W max
|
Tootja lehekülg | www.dahuasecurity.com/ceen/products/All-Products/HDCVI-Cameras/Lite-Series/5MP/Starlight/HAC-HFW1500TL-A |
Kaamera disain | Bullet |
Võrgukaamera tüüp | Fixed/HDTV/Megapixel/Outdoor |
Videoliides | HDCVI |
Efektiivseid megapiksleid | 5 Mega Pixel |
Võrgukaamera eraldusvõime | 5 - 7MP |
Objektiivi fokaalvahemik | 3.6 mm |
Objektiivikinnitus | M12 |
Minimaalne valgustus | 0.005 Lux |
IR valgustus | Yes |
Elektrooniline säriaeg | PAL: 1/25s–1/100000s ;NTSC: 1/30s–1/100000s |
Mikrofoon | Built-in |
Toitevalikud | 12V |
Toiteadapteri/ploki nõue | 12 VDC |
Energiatarbimine | 5.2 Watts |
Kaal | 0.27 kg |
Brutokaal | 0.482 kg |
Üksuse kasti laius | 0.11 |
Üksuse kasti pikkus | 0.24 |
Üksuse kasti kõrgus | 0.12 |
Täiskirjeldus | Type Fixed/HDTV/Megapixel/Outdoor|Video interface HDCVI|Focal Length 3.6 mm|Lens Mount M12|Min. Illumination 0.005 Lux|Electronic Shutter Speed PAL: 1/25s–1/100000s ;NTSC: 1/30s–1/100000s|Mikrofon Built-in|Power supply requirements 12 VDC |
Kategooria kood | HSC |
