Type Fixed/Outdoor | Video interface HDCVI | Sensor size 1/2.7 | Focal Length 3.6mm | Lens Mount M12 | Min. Illumination 0.005 Lux | Electronic Shutter Speed PAL: 1/25s–1/100000s NTSC: 1/30s–1/100000s | Power supply requirements 12V ±30% DC | Dimensions 240.7 mm × 90.7 mm × 90.4 mm
Kirjeldus | 1/2.7” 5 MP CMOS, 2880 × 1620 @ 25FPS
Sensitivity: 0.005 Lux/F1.6, 30IRE, 0 Lux IR on
Fixed lens 3.6 mm (92°)
True Day / Night with ICR Filter, Smart IR LED up to 80 m
BLC / HLC / DWDR, 2D DNR
Video output choices of CVI/TVI/AHD/CVBS by one BNC port
Bullet design, metal case, IP67, outdoor/indoor use, -40°C~+60°C
Power 12 VDC, 5.2W max
|
Tootja lehekülg | www.dahuasecurity.com/products/All-Products/HDCVI-Cameras/Lite-Series/5MP/Starlight/HAC-HFW1500TH-I8 |

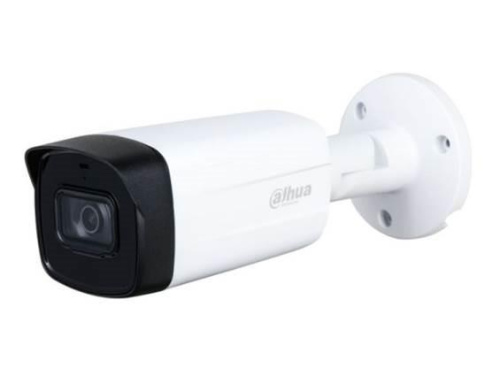

Kaamera disain | Bullet |
Võrgukaamera tüüp | Fixed/Outdoor |
Videoliides | HDCVI |
Efektiivseid megapiksleid | 5 Mega Pixel |
Võrgukaamera eraldusvõime | 5 - 7MP |
Sensori suurus | 1/2.7 |
Objektiivi fokaalvahemik | 3.6 - 4mm |
Objektiivikinnitus | M12 |
Minimaalne valgustus | 0.005 Lux |
Elektrooniline säriaeg | PAL: 1/25s–1/100000s NTSC: 1/30s–1/100000s |
Toitevalikud | 12V |
Toiteadapteri/ploki nõue | 12V ±30% DC |
Energiatarbimine | 5.2 Watts |
Keskkond | Outdoor |
Mõõtmed (füüsilised parameetrid) | 240.7 mm × 90.7 mm × 90.4 mm |
Kaal | 0.41 kg |
Brutokaal | 0.63 kg |
Üksuse kasti laius | 0.12 |
Üksuse kasti pikkus | 0.3 |
Üksuse kasti kõrgus | 0.11 |
Täiskirjeldus | Type Fixed/Outdoor|Video interface HDCVI|Sensor size 1/2.7|Focal Length 3.6mm|Lens Mount M12|Min. Illumination 0.005 Lux|Electronic Shutter Speed PAL: 1/25s–1/100000s NTSC: 1/30s–1/100000s|Power supply requirements 12V ±30% DC|Dimensions 240.7 mm × 90.7 mm × 90.4 mm |
Kategooria kood | HSC |
