Type Fixed/HDTV/Megapixel/Outdoor | Sensor size 5MP CMOS | Focal Length 3.6 mm | Lens Mount M12 | Min. Illumination 0.0001 Lux | Electronic Shutter Speed PAL: 1/3 s–1/100000 s; NTSC: 1/4 s–1/100000 s | Microphone Built-in | Power supply requirements 12 VDC | Dimensions 198.4 mm × 80.2 mm × 76.2 mm

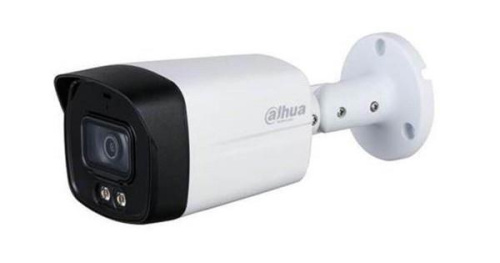

Kirjeldus | 5MP Smart Dual Illuminators Bullet Camera
> Max 25 fps@5MP (16:9 video output).
> 120 dB true WDR, 3D NR.
> Smart Dual Illuminators.
> 40 m illumination distance.
> Super Adapt.
> Built-in MIC.
> 3.6 mm fixed lens (89°).
> CVI/CVBS/AHD/TVI switchable.
> IP67, 12 VDC.
|
Tootja lehekülg | www.dahuasecurity.com/ceen/products/All-Products/HDCVI-Cameras/Lite-Series/5MP/Smart-Dual-Illuminators/HAC-HFW1509TLM-IL-A |
Kaamera disain | Bullet |
Võrgukaamera tüüp | Fixed/HDTV/Megapixel/Outdoor |
Efektiivseid megapiksleid | 5 Mega Pixel |
Võrgukaamera eraldusvõime | 5 - 7MP |
Sensori suurus | 5MP CMOS |
Objektiivi fokaalvahemik | 3.6 mm |
Objektiivikinnitus | M12 |
Minimaalne valgustus | 0.0001 Lux |
IR valgustus | Yes |
Elektrooniline säriaeg | PAL: 1/3 s–1/100000 s; NTSC: 1/4 s–1/100000 s |
Mikrofoon | Built-in |
Toitevalikud | 12V |
Toiteadapteri/ploki nõue | 12 VDC |
Energiatarbimine | 5.7 Watts |
Keskkond | Outdoor |
Mõõtmed (füüsilised parameetrid) | 198.4 mm × 80.2 mm × 76.2 mm |
Kaal | 0.34 kg |
Brutokaal | 0.503 kg |
Üksuse kasti laius | 0.115 |
Üksuse kasti pikkus | 0.24 |
Üksuse kasti kõrgus | 0.11 |
Täiskirjeldus | Type Fixed/HDTV/Megapixel/Outdoor|Sensor size 5MP CMOS|Focal Length 3.6 mm|Lens Mount M12|Min. Illumination 0.0001 Lux|Electronic Shutter Speed PAL: 1/3 s–1/100000 s; NTSC: 1/4 s–1/100000 s|Mikrofon Built-in|Power supply requirements 12 VDC|Dimensions 198.4 mm × 80.2 mm × 76.2 mm |
Kategooria kood | HSC |
