Type HDTV/Megapixel/Outdoor | Pixel Resolution 4 Mega Pixel | IR Illumination | Sensor size 1/2.9" | Microphone Built-in | Lens Mount M12 | Min. Illumination 0.0006 Lux | Effective pixels 2688 (H) × 1520 (V) | Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s | 1xRJ45 | Supports card capacities up to 256GB | Power options PoE/12V | Power supply requirements Basic: 2.1 W (12 VDC); 2.5 W (PoE) | Environment Outdoor | Operating temperature range –40 °C to +60 °C | Colour Black | Dimensions 99.1 mm × Φ121.9 mm

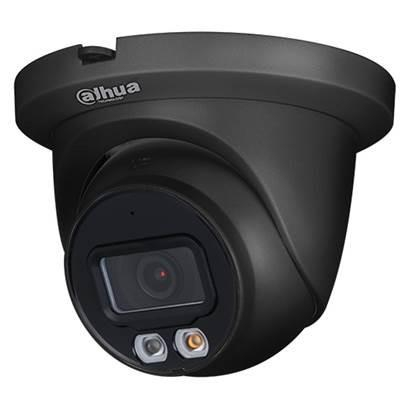

| Kirjeldus | 4MP Smart Dual Light Fixed-focal Eyeball WizSense Network Camera
> 4-MP 1/2.9" CMOS image sensor, low luminance, and high definition image.
> Outputs max. 4 MP (2688 × 1520)@20 fps, and supports 2560 × 1440 @25/30 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in warm light/IR LED, the max. illumination distance is 30 m and the max. warm light distance is 30 m.
> ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human).
> Supports max. 256 G Micro SD card; built in MIC.
> 12 VDC/PoE power supply, easy for installation.
> IP67 protection.
> SMD Plus.
|
| Tootja lehekülg | www.dahuasecurity.com/ceen/products/All-Products/Network-Cameras/WizSense-Series/2-Series/Smart-Dual-Illuminators/IPC-HDW2449TM-S-IL |
| Mudel | DHI-IPC-HDW2449TM-S-IL-0280B-B |
| Kaamera disain | Eyeball |
| Võrgukaamera tüüp | HDTV/Megapixel/Outdoor |
| Efektiivseid megapiksleid | 4 Mega Pixel |
| IR valgustus | Yes |
| Sensori suurus | 1/2.9" |
| Mikrofoon | Built-in |
| Objektiivikinnitus | M12 |
| Minimaalne valgustus | 0.0006 Lux |
| Efektiivsed pikslid | 2688 (H) × 1520 (V) |
| Elektrooniline säriaeg | Auto/Manual 1/3 s–1/100,000 s |
| RJ45 | 1 |
| Toetab kaardi mahtusid kuni | 256GB |
| Toitevalikud | 12V/PoE |
| Toiteadapteri/ploki nõue | Basic: 2.1 W (12 VDC); 2.5 W (PoE) |
| Keskkond | Outdoor |
| Töötemperatuuri ulatus | –40 °C to +60 °C |
| Värvus | Black |
| Mõõtmed (füüsilised parameetrid) | 99.1 mm × Φ121.9 mm |
| Kaal | 0.46 kg |
| Brutokaal | 0.65 kg |
| CnCode | 85258900 |
| Üksuse kasti laius | 0.11 |
| Üksuse kasti pikkus | 0.14 |
| Üksuse kasti kõrgus | 0.14 |
| Täiskirjeldus | Type HDTV/Megapixel/Outdoor|Pixel Resolution 4 Mega Pixel|IR Illumination|Sensor size 1/2.9"|Mikrofon Built-in|Lens Mount M12|Min. Illumination 0.0006 Lux|Effective pixels 2688 (H) × 1520 (V)|Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s|1xRJ45|Supports card capacities up to 256GB|Power options PoE/12V|Power supply requirements Basic: 2.1 W (12 VDC); 2.5 W (PoE)|Environment Outdoor|Operating temperature range –40 °C to +60 °C|Colour Black|Dimensions 99.1 mm × Φ121.9 mm |
| Kategooria kood | FNC |
