Type HDTV/Megapixel | Pixel Resolution 6 Mega Pixel | Focal Length 1.68 mm | IR Illumination | Sensor size 1/2.5" CMOS | Microphone Built-in | Lens Mount M12 | Min. Illumination 0.0006 Lux | Effective pixels 2560 (H) × 2560 (V) | Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s | 1xAudio-In | 1xAudio-Out | 1xRJ45 | 1xAlarm In | 1xAlarm Out | Supports card capacities up to 512GB | Power options PoE | Power supply requirements 12 VDC, 1 A; PoE (802.3af) | Environment Outdoor | Operating temperature range –30 °C to +60 °C | Colour White | Dimensions Φ122 mm × 53.3 mm
| Kirjeldus | > 6-MP 1/2.5" CMOS image sensor, low luminance, and high definition image.
> Outputs max. 6 MP (2560 × 2560)@25/30 fps.
> 360° fisheye monitoring covers all the corners without any blind zone.
> Supports fisheye front-dewarp and back-dewarp.
> Supports split screen for 2 and 4 windows.
> Built-in IR LED, and the max. illumination distance is 15 m.
> ROI, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
> WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> With deep learning algorithm, it supports: Perimeter Protection, People Counting, Heat map.
> Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 1TB Micro SD card;
> Built-in speaker and dual Mic. Supports two-way talk.
> 12 VDC/ PoE(802.3af) power supply.
> IP67 and IK10 protection.
> Focal Length 1.68 mm, Field of View 185*185°
|
| Tootja lehekülg | www.dahuasecurity.com/products/All-Products/Network-Cameras/WizMind-Panoramic-Series/Fisheye-Series/IPC-EBW5641-AS |

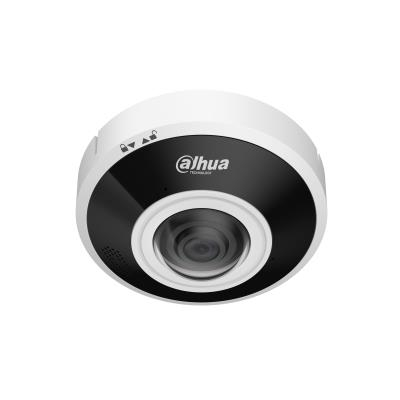

| Mudel | IPC-EBW5641-AS |
| Kaamera disain | Other |
| Võrgukaamera tüüp | HDTV/Megapixel |
| Efektiivseid megapiksleid | 6 Mega Pixel |
| Objektiivi fokaalvahemik | 1.68 mm |
| IR valgustus | Yes |
| Sensori suurus | 1/2.5" CMOS |
| Mikrofoon | Built-in |
| Objektiivikinnitus | M12 |
| Minimaalne valgustus | 0.0006 Lux |
| Efektiivsed pikslid | 2560 (H) × 2560 (V) |
| Elektrooniline säriaeg | Auto/Manual 1/3 s–1/100,000 s |
| Alarmi sisendpordid | 1 |
| Alarmi väljundpordid | 1 |
| Audio-in sisend | 1 |
| Audio-Out sisend | 1 |
| RJ45 | 1 |
| Toetab kaardi mahtusid kuni | 512GB |
| Toitevalikud | PoE |
| Toiteadapteri/ploki nõue | 12 VDC, 1 A; PoE (802.3af) |
| Energiatarbimine | 10.1 Watts |
| Keskkond | Outdoor |
| Töötemperatuuri ulatus | –30 °C to +60 °C |
| Värvus | White |
| Mõõtmed (füüsilised parameetrid) | Φ122 mm × 53.3 mm |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.002816 cubm |
| Product Net Weight | 0.46 kg |
| Unit Calculated Weight | 0.77 kg |
| Üksuse kasti laius | 0.11 |
| Üksuse kasti pikkus | 0.16 |
| Üksuse kasti kõrgus | 0.16 |
| Täiskirjeldus | Type HDTV/Megapixel|Pixel Resolution 6 Mega Pixel|Focal Length 1.68 mm|IR Illumination|Sensor size 1/2.5" CMOS|Mikrofon Built-in|Lens Mount M12|Min. Illumination 0.0006 Lux|Effective pixels 2560 (H) × 2560 (V)|Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s|1xAudio-In|1xAudio-Out|1xRJ45|1xAlarm In|1xAlarm Out|Supports card capacities up to 512GB|Power options PoE|Power supply requirements 12 VDC, 1 A; PoE (802.3af)|Environment Outdoor|Operating temperature range –30 °C to +60 °C|Colour White|Dimensions Φ122 mm × 53.3 mm |
| Kategooria kood | FNC |
