Type HDTV/Megapixel/Outdoor | Pixel Resolution 8 Mega Pixel | Focal Length 2.8 mm | IR Illumination | Sensor size 1/2.7" | Microphone Built-in | Lens Mount M12 | Min. Illumination 0.0005 Lux | Effective pixels 4096 (H) × 1860 (V) | Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s | 1xAudio-In | 1xAudio-Out | 1xRJ45 | 1xAlarm In | 1xAlarm Out | Supports card capacities up to 256GB | Power options PoE/12V | Power supply requirements 12 VDC (±30%); PoE (802.3af) | Environment Outdoor | Operating temperature range –40 °C to +60 °C | Colour White | Dimensions 183.1 × 99.0 × 78.0 mm

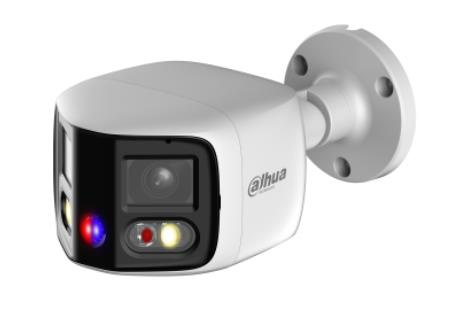

| Kirjeldus | "2x4MP TiOC Duo Splicing Fixed-focal Bullet WizSense Network Camera
> Outputs 180° wide angle splicing image.
> Outputs max. 8 MP (4096 × 1860)@20 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in IR LED and warm light, the max. IR illumination distance is 25 m and warm light distance is 20 m.
> ROI, SMART H.264 +/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
> WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card; built in dual Mic; built in speaker, support two-way talk.
> 12 VDC/PoE power supply, easy for installation.
> IP67 protection.
> Sound and light alarm (red and blue lights).
> EPTZ: Enlarge and track the targets of intelligent alarms.
> SMD 4.0.
> One-tap arming/disarming through alarm input." |
| Tootja lehekülg | www.dahuasecurity.com/ceen/products/All-Products/Network-Cameras/WizSense-Series/TiOC/IPC-PFW3849S-A180-AS-PV |
| Mudel | PFW3849S-A180-E2ASPV-0280B |
| Kaamera disain | Bullet |
| Võrgukaamera tüüp | HDTV/Megapixel/Outdoor |
| Efektiivseid megapiksleid | 8 Mega Pixel |
| Objektiivi fokaalvahemik | 2.8 mm |
| IR valgustus | Yes |
| Sensori suurus | 1/2.7" |
| Mikrofoon | Built-in |
| Objektiivikinnitus | M12 |
| Minimaalne valgustus | 0.0005 Lux |
| Efektiivsed pikslid | 4096 (H) × 1860 (V) |
| Elektrooniline säriaeg | Auto/Manual 1/3 s–1/100,000 s |
| Alarmi sisendpordid | 1 |
| Alarmi väljundpordid | 1 |
| Audio-in sisend | 1 |
| Audio-Out sisend | 1 |
| RJ45 | 1 |
| Toetab kaardi mahtusid kuni | 256GB |
| Toitevalikud | 12V/PoE |
| Toiteadapteri/ploki nõue | 12 VDC (±30%); PoE (802.3af) |
| Energiatarbimine | 3.8 Watts |
| Keskkond | Outdoor |
| Töötemperatuuri ulatus | –40 °C to +60 °C |
| Värvus | White |
| Mõõtmed (füüsilised parameetrid) | 183.1 × 99.0 × 78.0 mm |
| Kaal | 0.695 kg |
| Brutokaal | 0.87 kg |
| Üksuse kasti laius | 0.15 |
| Üksuse kasti pikkus | 0.24 |
| Üksuse kasti kõrgus | 0.11 |
| Täiskirjeldus | Type HDTV/Megapixel/Outdoor|Pixel Resolution 8 Mega Pixel|Focal Length 2.8 mm|IR Illumination|Sensor size 1/2.7"|Mikrofon Built-in|Lens Mount M12|Min. Illumination 0.0005 Lux|Effective pixels 4096 (H) × 1860 (V)|Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s|1xAudio-In|1xAudio-Out|1xRJ45|1xAlarm In|1xAlarm Out|Supports card capacities up to 256GB|Power options PoE/12V|Power supply requirements 12 VDC (±30%); PoE (802.3af)|Environment Outdoor|Operating temperature range –40 °C to +60 °C|Colour White|Dimensions 183.1 × 99.0 × 78.0 mm |
| Kategooria kood | FNC |
