Type Outdoor | Pixel Resolution 8 Mega Pixel | Focal Length 2.7 mm-13.5 mm | IR Illumination | Sensor size 1/2.7" CMOS | Microphone Built-in | Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s | 1xMicroSD Card Slot | 1xRJ45 | Supports card capacities up to 512GB | Power options PoE/12V | Power supply requirements 12 VDC/PoE (802.3af) | Environment Outdoor | Operating temperature range -30°C~+60°C | Dimensions 108.3 mm × Φ122 mm
Tootja lehekülg | www.dahuasecurity.com/products/All-Products/Network-Cameras/WizSense-Series/2-Series/8MP/IPC-HDW2841T-ZS |

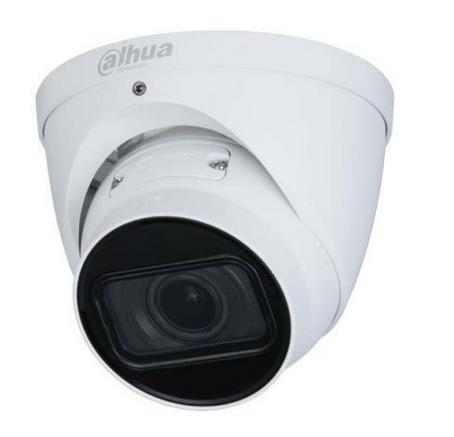

Kirjeldus | - 1/2.7” 8Megapixel progressive CMOS
- 8MP 3840 × 2160 @ 20FPS (2688 × 1520 @ 30FPS)
- Minimum illumination: 0.008 lux @ F1.5 (Color, 30 IRE), 0.0008 lux @ F1.5 (B/W, 30 IRE), 0 lux (Illuminator on)
- Up to 40 meters IR Illumination, Smart IR
- True Day/Night (ICR), 3DNR, BLC / HLC / True WDR 120dB / 3D DNR
- Motorized zoom lens 2.7 mm-13.5 mm (113°-31°)
- H.265; H.264; H.264H; H.264B; MJPEG encoding, ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone
- Micro SD Card slot, up to 256GB
- Built-in MIC
- Metal case, Eyeball design, IP67, -30°C~+60°C, PoE / 12VDC power
- General IVS Analytics: Intrusion; tripwire (detection of vehicle and human)
- Free IP monitoring software available
|
Mudel | IPC-HDW2841T-ZS-27135 |
Kaamera disain | Eyeball |
Võrgukaamera tüüp | Outdoor |
Efektiivseid megapiksleid | 8 Mega Pixel |
Objektiivi fokaalvahemik | 2.7 mm-13.5 mm |
IR valgustus | Yes |
Sensori suurus | 1/2.7" CMOS |
Mikrofoon | Built-in |
Elektrooniline säriaeg | Auto/Manual 1/3 s–1/100,000 s |
MicroSD kaardipesa | 1 |
RJ45 | 1 |
Toetab kaardi mahtusid kuni | 512GB |
Toitevalikud | PoE/12V |
Toiteadapteri/ploki nõue | 12 VDC/PoE (802.3af) |
Keskkond | Outdoor |
Töötemperatuuri ulatus | -30°C~+60°C |
Mõõtmed (füüsilised parameetrid) | 108.3 mm × Φ122 mm |
Kaal | 0.7 kg |
Brutokaal | 0.87 kg |
Üksuse kasti laius | 0.16 |
Üksuse kasti pikkus | 0.16 |
Üksuse kasti kõrgus | 0.135 |
Täiskirjeldus | Type Outdoor|Pixel Resolution 8 Mega Pixel|Focal Length 2.7 mm-13.5 mm|IR Illumination|Sensor size 1/2.7" CMOS|Mikrofon Built-in|Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s|1xMicroSD Card Slot|1xRJ45|Supports card capacities up to 512GB|Power options PoE/12V|Power supply requirements 12 VDC/PoE (802.3af)|Environment Outdoor|Operating temperature range -30°C~+60°C|Dimensions 108.3 mm × Φ122 mm |
Kategooria kood | FNC |
