- Easily supports the latest high-bandwidth applications with up to six 10G connections
- NebulaFlex Pro allows users to switch between self-management and the intuitive Nebula cloud management mode with the included annual Pro package
- Matching Networked AV mode provides performance for professional AVoIP network configurations and monitoring services
- Supports both PoE++ and PoE+, providing 60 W and 30 W respectively for each port with a large power budget of up to 960 W
- Supports Multi-Gigabit connections: 100M/1G/2.5G/5G/10G.

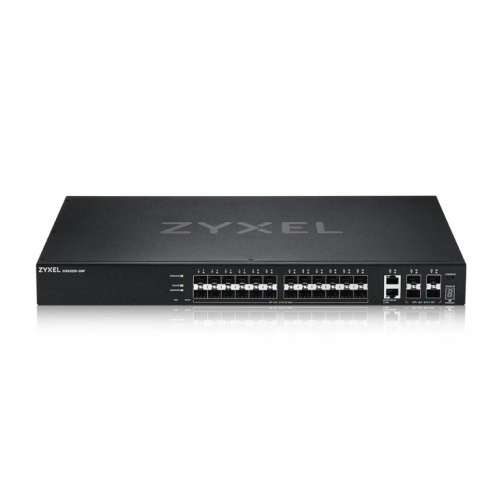

The XGS2220 series is a family of Layer 3 access switches that consists of six models, including PoE, non-PoE and fibre options. In addition to four 10G SFP+ master links, all are equipped with two additional 10G Multi-Gigabit (1G/2.5G/5G/10G) RJ-45 ports for more flexible connectivity. The XGS2220-30 and XGS2220-54 models without PoE provide 24 or 48 Gigabit fixed ports for everyday network access. The PoE models XGS2220-30HP, XGS2220-54HP and XGS2220-54FP provide additional Ethernet power capabilities and are Wi-Fi 6/6E ready. The XGS2220-30F fibre option provides 24 SFP ports, all of which are used to achieve business connectivity based on the flexibility of various multimedia interface options and are an ideal choice for increased business productivity. This series is equipped with an intelligent fan designed to automatically adjust speed depending on the temperature of the device, ensuring near-silent switch operation.
Vaheta klassi | Managed |
Kasutus | Medium and large companies |
Vaheta kihti | L2 |
Võrgu arhitektuur | GigabitEthernet |
10/100 Mbps portide arv | None |
10/100/1000 Mbps portide arv | None |
10/100/1000/2500 Mbps pordid | None |
10Gb portide arv | 2 |
PoE-portide arv (PoE ja PoE+) | None |
PoE+ portide arv | None |
COMBO-portide arv | None |
SFP-portide arv | 24 |
SFP+ portide arv | 4 |
SFP56 portide arv | None |
QSFP+ portide arv | None |
konsooli port | No |
Edastamise režiim | Store-and-forward |
Läbilaskevõime | 168 |
Edastamise määr | 125 |
Paketipuhver | 2 |
MAC-aadressi tabeli suurus | 32000 |
Jumbo raamide tugi | Yes |
Jumbo raami suurus | 9 |
Virnastatavus | Yes |
VLAN | |
Toetatud protokollid ja standardid | |
QoS | |
Turvalisus | |
Juhtimine, jälgimine, seadistamine | |
L2 funktsioonid | |
L3 funktsioonid | |
Muud funktsioonid | |
Šassii tüüp | Mini Tower |
Ventilaator | No |
Voolutoite | Internal |
Energiatarbimine | 66 |
Keskmine aeg rikete vahel (MTBF) | 352.923 |
Kaasas tarvikud | |
Mõõtmed (füüsilised parameetrid) | |
Kaal | 3.5 |
Teised omadused | |
